StarTech.com 3.5mm 4 Position to 2x 3 Position 3.5mm Headset Splitter Adapter M/F - White

Marketing Information

Have you recently purchased a newer laptop or Ultrabook and now you can't figure out where to plug in your favorite headset

Most new laptops and Ultrabooks come equipped with a single 3.5mm 4-position (4pin) audio port that supports both audio input and output. A great number of headsets on the market come equipped with two separate headphone and microphone connectors that are not compatible with this new configuration.

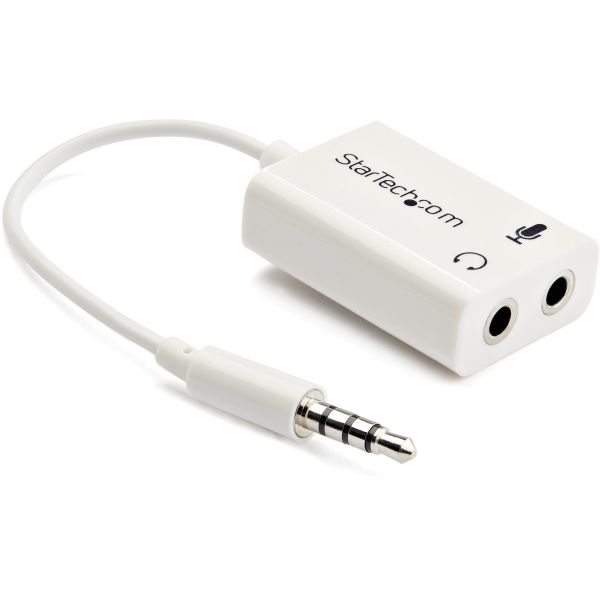

The MUYHSMFFADW white headset adapter features two 3.5mm 3-position ports that provide a separate headphone and microphone connection that can be connected to the single audio port on your laptop. Alternatively, you can also connect a separate microphone and powered speakers if you prefer to use Skype or chat online without using a headset.

Headset Connectivity

Simply connect the headphone plug from your headset into the audio output port marked with the headphone symbol, and connect the microphone plug into the audio input port marked with the microphone symbol. Plug the adapter into the audio port on your laptop and you're all set.

Microphone and Powered Speaker Connectivity

Want to work or game without using a headset

You can also connect a microphone and powered speakers to your laptop using the adapter. Just plug in your microphone into the audio input port marked with the microphone symbol, and plug your powered speakers into the audio output port marked with the headphone symbol, and connect the adapter to the audio port on your laptop.

Keep in touch while you travel

Are you travelling for work or taking a trip

The headset adapter features a compact and sturdy design that makes it the perfect solution for mobile applications.

Tuck the adapter in with your tablet or slip it inside another carrying case. It works great with tablets and smartphones that have a single audio port. Just connect the headphone and microphone plugs from your headset into the adapter, connect the adapter to your mobile device and start talking.

This high quality 3.5mm headset adapter is backed by StarTech.com's lifetime warranty.

Please note:

This adapter is not a headphone splitter or Y-cable. It cannot be used to split the audio output to two separate sets of headphones or speakers.

Some laptops and mobile devices will not work with all external microphones. This is typically caused by an impedance mismatch between the microphone and the device. This is due to hardware incompatibility and is not a limitation of the MUYHSMFFADWadapter.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: MUYHSMFFADW
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 3.5mm 4 Position to 2x 3 Position 3.5mm Headset Splitter Adapter M/F - White
Packaged Quantity: 1 Each
Product Type: Audio Cable
Technical Information
Cable Type: Mini-phone
Cable Characteristic: Splitter Cable
Number of Ways: 2-way
Cable Length: 15.24 cm
Connector Type on First End: Mini-phone Stereo Audio - Male
Connector on First End Details: 1 x Mini-phone Stereo Audio - Male
Connector Type on Second End: Mini-phone Stereo Audio - Female
Connector on Second End Details: 2 x Mini-phone Stereo Audio - Female
Connector Plating: Nickel
Conductor: Copper
Device Supported:

• Audio Device
• Speaker
• Headphone
• Headset
• Microphone
• Notebook
• iPod
• iPhone
• iPad
• Cellular Phone
• Ultrabook

MFI: Yes
Physical Characteristics
Color Family: White
Product Color: White
Jacket Material: Polyvinyl Chloride (PVC)
Weight (Approximate): 10 g
Shipping Height: 7.11 mm
Shipping Width: 8.89 mm
