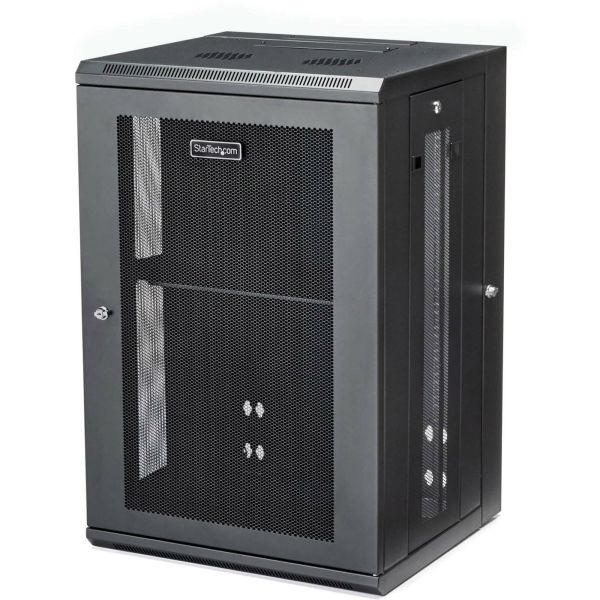

StarTech.com 18U Wall Mount Network Switch Cabinet With Hinged Back Panel

Marketing Information

This feature-rich 18U server room rack cabinet is ideal for optimizing equipment storage in network closets edge centers and technology shops with limited space, where there is a need for mountable equipment. It features adjustable mounting rails, mesh doors and panels as well as options for active cooling.

You can access your equipment and cabling from all four sides of this data center rack including the back with a rear hinge that swings the enclosure away from the wall.

Premium Equipment Protection

This wall mount equipment rack features premium-quality steel construction, with secure lockable front and back doors as well as lockable side panels. It features a grounding lug to prevent the build-up of sta...tic electricity which can result in electrostatic discharge (ESD), keeping your equipment protected from surges.

This rack also offers dependable protection through both passive and active cooling. The mesh front doors and side panels along with the vents in the top offer passive cooling while the top offers placement support for 120mm fan mounts for an additional active cooling option.

Mount All Types of Equipment

This 4-post server room cabinet has a weight capacity of up to 200 lbs. (90kg) and with a mounting depth from 2 to 16 inches, it can hold a variety of equipment. The mounting rails on the rack can be switched between both square cage nut hole or tapped 12-24 threaded hole styles. For non-mountable equipment, this rack also includes a 1U shelf.

For hassle-free cable management, the rack includes a 3-meter roll of hook-and-loop cable tie that makes it easy to keep your cables neat and tidy by binding them together or binding them to the rack. The self-gripping fabric can be cut to any size, enabling a wrap-around solution for the cables of any rack-mount equipment.

Comprehensive Product Testing & Expert Technical Support

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: RK1820WALHM
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 18U Wall Mount Network Switch Cabinet With Hinged Back Panel
Packaged Quantity: 1 Each
Product Type: Rack Cabinet
Technical Information
Application/Usage:

• Server
• LAN Switch
• Patch Panel

Physical Characteristics
Form Factor: Wall Mountable
Color Family: Black
Product Color: Black
Product Material:

• Steel
• Mesh

Static/Stationary Weight Capacity: 90 kg
Height: 904.2 mm
Width: 609.6 mm
Length: 551.2 mm
Weight (Approximate): 67.86 kg
Rack Height: 18U
Rack Depth: 406.40 mm
Miscellaneous
Package Contents:

• 18U Wall-Mount Server Rack Cabinet - 20 in. Deep - Hinged
• 1 x 1U Shelf
• 1 x Roll of Hook-and-loop Fastener
• 72 x 12-24 Cage Nuts
• 72 x 12-24 Screws
• 2 x Door Keys
• 2 x Side Panel Keys
• 1 x Instruction Manual

Assembly Required: No
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 5 Year
