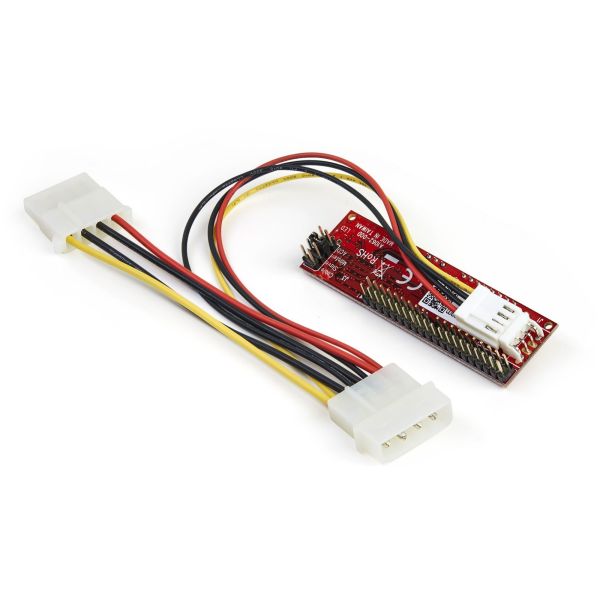

StarTech.com 40-Pin IDE PATA to SATA Adapter Converter for HDD/SSD/ODD

Marketing Information

The IDE2SAT240-pin IDE toSATA adapter enables you to connect a SATA I/II/III drive to an availableIDE/ATA 33/66/100/133 motherboard port -a cost effective solution that allows you to add newer SATA drives, andkeepyourexisting motherboard.

The IDE/SATA adapter offers a cost-effective solution for bridging the gap between a newer 2.5"/3.5"/5.25" SATA drive and older IDE motherboard port. The IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray, DVD, orCD-ROM drives to an older IDE motherboard.

TheIDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free lifetime technical support.

More from the Manufacturer

...:void(0)" onclick="javascript:window.open('//content.etilize.com/mini-site/en_uk/1025484923.html','_blank','height=800,width=780,resizable=yes,scrollbars=yes,toolbar=no,menubar=no,location=no,directories=no,status=no');return false;">More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: IDE2SAT2
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 40-Pin IDE PATA to SATA Adapter Converter for HDD/SSD/ODD
Packaged Quantity: 1 Each
Product Type: IDE to SATA Adapter
Physical Characteristics
Color Family: Black
Product Color: Black
Product Material:

• Plastic
• Steel

Height: 22.9 mm
Width: 20.3 mm
Length: 76.2 mm
Weight (Approximate): 28.3 g
Miscellaneous
Additional Information:

• Chipset ID: Marvell - 88SA8852
• 1 x IDE (40 Pin; EIDE/PATA)
• 1 x SATA Data & Power Combo (7+15 pin)
• 1 x SP4 (4 pin; Small Drive Power)
• Maximum Data Transfer Rate: 133MB/sec
• Product Length: 75.5 mm
• Support for 48-bit Logical Block Addressing (LBA)
• Supports 2.5" , 3.5" , and 5.25" SATA Drives

Compatibility:

• Blu-ray drive
• DVD drive
• CD-ROM drive

Certifications & Standards:

• CE
• FCC

Country of Origin: Taiwan
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
