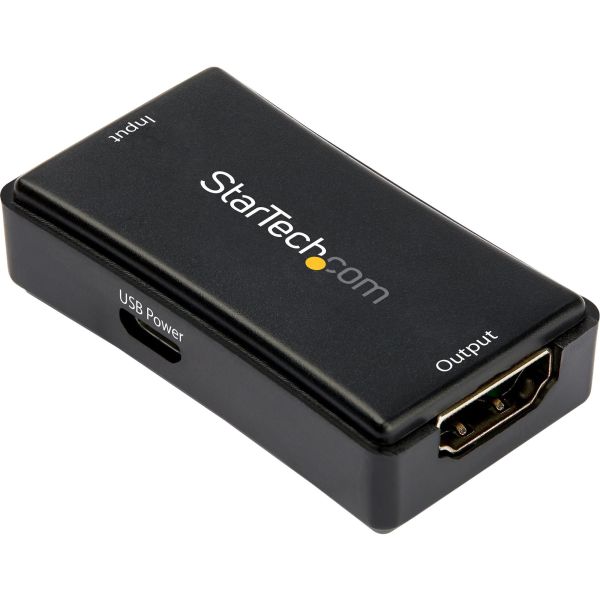

StarTech.com Signal Amplifier

Marketing Information

Use this 4K HDMI® signal booster to amplify your HDMI signal and extend it 45 ft. (14 m) using HDMI cabling.

Cable length from source Cable length to display Total cable length Maximum resolution 82 ft. (25 m) 82 ft. (25 m) 164 ft. (50 m) 1080p (60 Hz) - 1920x1080 65 ft. (20 m) 65 ft. (20 m) 130 ft. (40 m) 4K (30 Hz) - 3840x2160 22.5 ft. (7 m) 22.5 ft. (7 m) 45 ft. (14 m) 4K (60 Hz) - 3840x2160

Maintains Ultra HD 4K Video

When you're extending HDMI over distances using standard video cabling, higher resolutions from your HDMI 2.0 devices can become unavailable after a few short feet. With this signal extender you can ensure that HDMI 2.0 resolutions up to UHD 4K at 60Hz are available eve...n at distances up to 45 ft. (14 m). You can achieve even longer distances at lower refresh rates - up to 4K at 30Hz, at up to 100 ft. (30 m).

The signal booster works by connecting two HDMI certified cables, each up to 22.5 ft. (7 m) in length, to either side of the signal booster.

Hassle-Free Installation

With its compact design, the HDMI signal amplifier is easy to hide, for a discreet installation. By extending your video signal using HDMI certified cables, the inline booster is a cost-effective alternative to more expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure.

Supports Several Distances

Support for a variety of extension distances makes the 4K repeater perfect for multi-device deployment across large institutions, such as boardrooms in corporate offices, classrooms in schools, or waiting rooms in hospitals, as these applications may require varied distances in different rooms.

HDBOOST4K2 is backed by a 2-year StarTech.com warranty with free lifetime technical support.

Note: To achieve resolutions up to 4K 60Hz, your video source, display and cabling must support HDMI 2.0.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: HDBOOST4K2
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Signal Amplifier
Packaged Quantity: 1
Product Type: Signal Amplifier
Interfaces/Ports
HDMI In: Yes
HDMI Out: Yes
USB: Yes
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Media & Performance
Maximum Operating Distance: 30.48 m
Physical Characteristics
Color Family: Black
Product Color: Black
