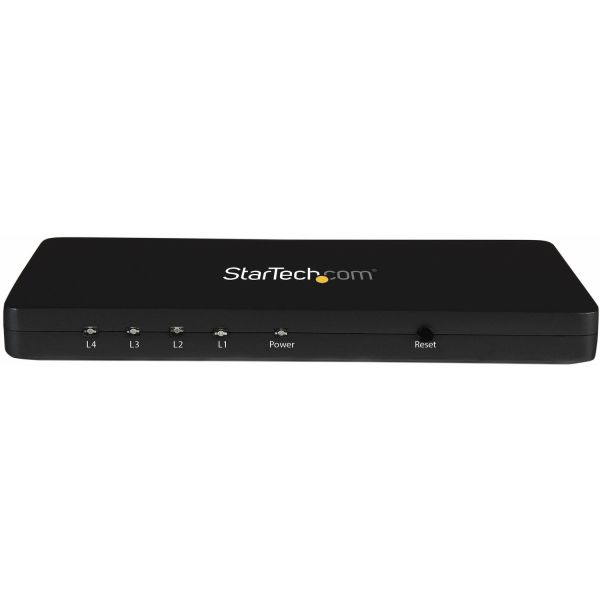

StarTech.com 4K HDMI 4-Port Video Splitter-1x4 HDMI Splitter w/Solid Aluminum Housing-4K 30Hz

Marketing Information

The ST124HD4K 4-port 4K HDMI splitter lets you share fourHDMI displays or projectors with anHDMI-enabled audio /video source devices,such as a computer, Blu-ray playerorcable TV set-topbox.

With support for Ultra HD (4K) the HDMI splitter ensures astonishing picture quality, fourtimes the resolution of high-definition1080p at30Hz.The 4K splitteris also backwardcompatible with previous HDMI revisions, supporting1080p / 720p HDMI video resolution devices.Even if you don't require4K video today, the ST124HD4K ensures you'll be ready to take advantage of tomorrow's display technology.

Save time while setting up your splitter withEDID emulationensuring all of your native settings such asresolution and refresh rate are communicated...between your video source and displays. EDID emulationmaximizescompatibility with your 4K display, ensuring a convenient plug-and-play installation.

Constructed of solid aluminum, the HDMI splitter casing is heavy enough to prevent the unit from shifting or sliding around when you move the attached HDMI cables. Plus, the small footprintallows for seamless integration into any digital signage application.

The ST124HD4K is backed by a StarTech.com 2-year warranty, and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: ST124HD4K
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 4K HDMI 4-Port Video Splitter-1x4 HDMI Splitter w/Solid Aluminum Housing-4K 30Hz
Packaged Quantity: 1
Product Type: Signal Splitter
Technical Information
Maximum Frequency: 30 Hz
Interfaces/Ports
HDMI In: Yes
HDMI Out: Yes
Number of HDMI Inputs: 1
Number of HDMI Outputs: 4
Power Description
Input Voltage: 5 V DC
Physical Characteristics
Color Family: Black
Product Color: Black
Product Material: Aluminium
Height: 12.7 mm
Width: 83.8 mm
Length: 139.7 mm
Weight (Approximate): 280 g
Miscellaneous
Additional Information:

• Display a 4K HDMI signal on four different HDMI displays
• Use to showcase 4K displays, by outputing the same video source on multiple displays
• Display corporate information or advertising on multiple displays at a shopping center
• Use to display a stock ticker or promotional information at financial institutions
• Display the same information on multiple displays in waiting rooms in healthcare facilities
• Supports Ultra HD video resolutions up to 4K @ 30Hz
• Support for 7.1 surround sound audio
• Supported Resolutions: 3840x2160 (4K), 2560x1600, 1920x1200, 1920x1080 (1080p), 1280x720 (720p)
