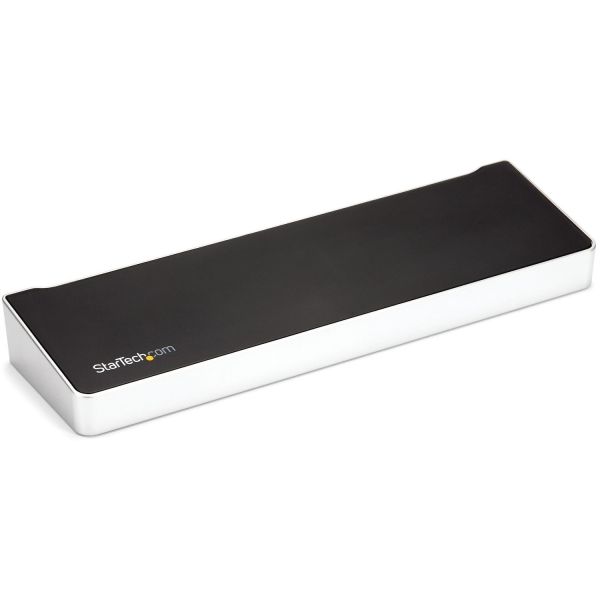

StarTech.com Triple-Monitor 4K USB-C Dock with 5x USB 3.0 Ports - 100W PD

Marketing Information

This triple-4K dock for Mac, Windows and Chrome USB-C laptops helps you take productivity to a whole new level. With three 4K video connections, 100W Power Delivery, and 5x USB 3.0 ports, the USB-C dock is perfect for your MacBook, Dell XPS, Chromebook or other USB-C laptop requiring additional ports.

You can also connect the dock to your USB 3.0 laptop through a USB-A port, using a USB-C to A cable, such as the USB315AC1M(sold separately). Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.

Enhance Productivity

The 4K USB-C docking station lets you create a three-monitor Ultra HD workstation. Connect:

• 2x 4K DisplayPort (DisplayLink) at 4...096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz and
• 1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30Hz

For high-resolution applications, you can connect the dock to a 5K display at 60Hz, using the two DisplayPort ports.

100W Power Delivery

Using a single cable, the USB-C dock will power and charge power-hungry laptops, with up to 100W Power Delivery, and power your peripherals with its 150W power adapter.

Powerful Connections

This triple-monitor docking station lets you transform your laptop into a full-sized workstation. It gives you five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl. 1x Fast-Charge port), a Gigabit Ethernet port, headset jack, and separate 3.5 mm audio and microphone ports.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility: To setup and save custom windows layouts.

• Mac Address Pass-Through Utility: To improve network security.

• USB Event Monitoring Utility: To track and log connected USB devices

• Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

The TAA compliant DK30CH2DEPUE is backed by a StarTech.com 3-year warranty and free lifetime technical support.

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: DK30CH2DEPUE
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Triple-Monitor 4K USB-C Dock with 5x USB 3.0 Ports - 100W PD
Packaged Quantity: 1
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported:

• Tablet PC
• Notebook

Interfaces/Ports
Host Interface: USB 3.0 Type C
Audio Line Out: Yes
Total Number of USB Ports: 6
Number of USB 3.0 Ports: 4
USB Type-C: Yes
USB Type-C Detail: 2 - USB Type-C (24 pin) USB 3.0 (5Gbps) Female
Network (RJ-45): Yes
Number of DisplayPort Outputs: 2
DisplayPort: Yes
Headphone/Microphone Combo Port: Yes
Microphone: Yes
Number of HDMI Outputs: 1
HDMI: Yes
Thunderbolt: Yes
Software
Operating System Supported: ChromeOS 55+
Power Description
Maximum Power Supply Wattage: 100 W
Physical Characteristics
Height: 33 mm
Width: 81.3 mm
Depth: 269.2 mm
Weight (Approximate): 382 g
Miscellaneous
Package Contents:

• Triple-Monitor 4K USB-C Dock with 5x USB 3.0 Ports - 100W PD
• 1 x USB-C Cable
• 1 x Universal Power Adapter (UK, EU)
• 1 x Instruction Manual
• 1 x Anti-Slip Rubber Pads

Compatibility:

• Lenovo X1
• Lenovo ThinkPad P Series
• Dell Latitude Notebooks
• Dell Precision Notebooks
• Dell XPS 15 Notebooks
• HP Spectre Notebooks
• HP ZBook Notebooks
• Apple MacBook Pro 16

Brand Compatibility:

• Apple
• Dell
• HP
• Lenovo

Environmental Compliance:

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

TAA Compliant: Yes
Warranty
Limited Warranty: 3 Year
