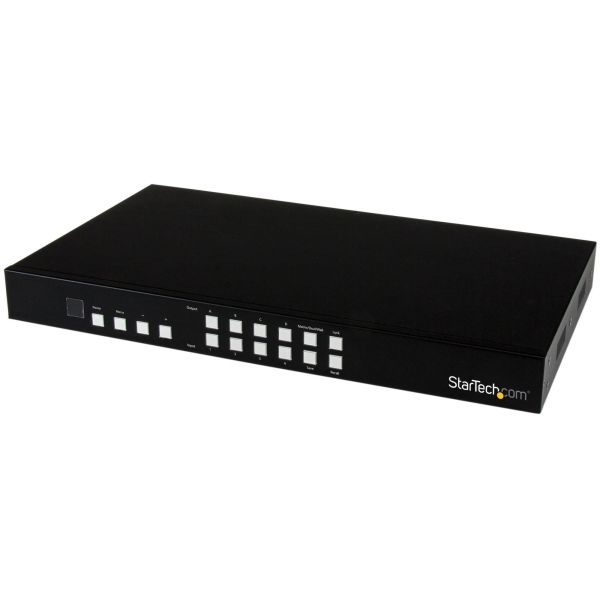

StarTech.com 4x4 HDMI Matrix Switch with Picture-and-Picture Multiviewer or Video Wall

Marketing Information

TheVS424HDPIP 4X4 HDMI Matrix Switch with Picture-and-Picture (PAP) gives you the power to seamlessly combine and distribute four HDMI audio/video sourcesacross four different HDMI displays, with the added ability to combine multiple images on the same display.

See the Whole Picture

The split-screen multiplexing switchcombines the flexibility of a matrix switch with the scalability of a video wall, giving you the freedom to combine video sources on a single display. You can alsodistribute different videocombinations independently across four individualdisplays. The switch offersfull matrix configuration supporting four different picture-and-picture modes per display: Matrix Mode (1x1) / Dual Mode (2x1) / Quad Mode (4x1...)/ TV Wall Mode (1x4).

Control Your Output

Fitting your boardroom or digital signage application with a VS424HDPIP dramatically increases your communication possibilities. Not only does the picture-and-picture matrixswitch increase your communication by a factor of four per display, but it also enables you to adjust your video sources remotely using your local TCP/IP network, or the included IR remote control.

Increase the Versatility of Your Displays

The VS424HDPIP is a flexible video switch that can improveany video display application.The picture-and-picture technology enables you to share up to four distinct imageson the same screen, reducing required video real estateand saving you from wasting money on additional displays in your digital signage applications. Forsecurity monitoring, you can combine four video sources onto a single display to view everything more efficiently and broadcast those feeds to fourdifferent displays in different locations --you can even zoom into to a single feed for a closer look without disrupting the remaining three displays. For versatile installation options, mounting hardware is included ensuring atidy and professional installation.

The VS424HDPIP is backed by a StarTech.com 2-year warrantyand free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: VS424HDPIP
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 4x4 HDMI Matrix Switch with Picture-and-Picture Multiviewer or Video Wall
Packaged Quantity: 1
Product Type: Audio/Video Switchbox
Technical Information
Connectivity Technology: Cable
Number of Input Devices Supported: 4
Device Supported:

• Display
• TV

Number of Displays Supported: 4
Video
Graphics Modes: WUXGA
Maximum Video Resolution: 1920 x 1200
Interfaces/Ports
HDMI In: Yes
HDMI Out: Yes
Serial Port: Yes
Number of HDMI Inputs: 4
Number of HDMI Outputs: 4
Physical Characteristics
Color Family: Black
Product Color: Black
Product Material: Aluminium
Form Factor: Wall Mountable
Height: 49 mm
Width: 250 mm
Depth: 436 mm
Weight (Approximate): 2.80 kg
Miscellaneous
TAA Compliant: Yes
