StarTech.com 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable
Layer Supported | 2 |
---|---|
Power Consumption | 62 W |
Manageable | No |
Stack Port | No |
Product Type | Ethernet Switch |
Power Source | Power Adapter |
Form Factor | Rail-mountable/Wall Mountable |
Brand Name | StarTech.com |
Ethernet Technology | Gigabit Ethernet |
Media Type Supported | Twisted Pair |
Total Number of Network Ports | 5 |
PoE (RJ-45) Port | No |
TAA Compliant | Yes |
Ethics - Environment | Rating Coming Soon |
Ethics - Animal | Rating Coming Soon |
Ethics - Human | Rating Coming Soon |
Ethics - Integrity | Rating Coming Soon |
Ethics - Durability | Rating Coming Soon |
Ethics - Alert | Rating Coming Soon |
Description

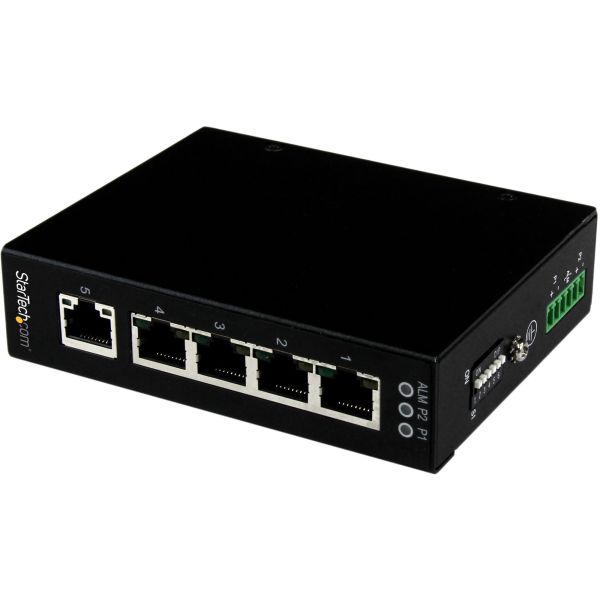

The IES51000 5-Port Industrial Ethernet Switch offers 5 Gigabit Ethernet ports in a compact, IP30-rated metal enclosure, making it the ideal network solution for harsh industrial environments such as factory floors, warehouses or large junction boxes.
Quickly connect your network devices with little to no configuration. This unmanaged industrial network switch supports 10/100/1000 Mbps transfer speeds, full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX, which helps to eliminate the hassle of troubleshooting mis-matched speed and duplex settings.
Providing seamless operation in the event of power dips or failures, the switch features redundant 12-58V DC terminal block power inputs to help prevent unnecessary downt...ime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.
For easy installation and dependable performance in harsh environments, the switch can be DIN Rail or wall mounted and features a compact, IP30-rated enclosure with an extended operating temperature range (-40°C to 75°C).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: IES51000
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable
Packaged Quantity: 1
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 5
Token Ring Port: No
LRE Port: No
Uplink Port: No
Bypass: No
Modular: No
Management Port: No
USB: No
Stack Port: No
Number of Network (RJ-45) Ports: 5
Network (RJ-45): Yes
Port/Expansion Slot Details: 5 x Gigabit Ethernet Network
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Network & Communication
Layer Supported: 2
Networking Standards:
- IEEE 802.3af
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.3
Management & Protocols
Manageable: No
Power Description
PoE (RJ-45) Port: No
Power Source: Power Adapter
Power Consumption: 62 W
Physical Characteristics
Product Material: Steel
Form Factor:
- Rail-mountable
- Wall Mountable
Height: 27.9 mm
Width: 88.9 mm
Depth: 111.8 mm
Weight (Approximate): 328.9 g
Miscellaneous
Certifications & Standards:
- CE
- FCC
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3ab 1000BASE-TX
- IEEE 802.1p QoS
- IEEE 802.3az Energy-Efficient Ethernet
- IEEE 802.3ad Link Aggregation
TAA Compliant: Yes
