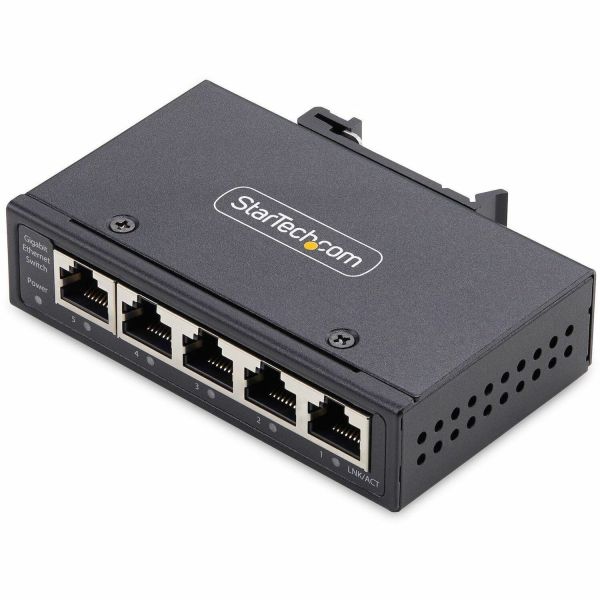

StarTech.com I51G Ethernet Switch

Marketing Information

This unmanaged, fanless network switch delivers silent, energy-efficient performance with five multi-speed Ethernet ports (10/100/1000 Mbps). Its durable all-metal casing ensures long-lasting reliability.

Enhance Your Network

Expand your network connectivity with simple plug-and-play setup. This network switch is ideal for large file transfers, streaming, network sharing and storage, or other bandwidth-intensive applications. Auto-negotiation detects the highest supported speeds on your devices for maximum performance and compatibility.

Rugged TAA Switch

This TAA compliant unmanaged switch features an unintrusive design and small dimensions (3.9x2.3x1 inch / 100.5x60x 25.5mm). Key features such as 9K J...umbo Frames, 3-Pin Terminal Block Power Input, QoS IEEE 802.1p, and the included DIN Rail and Wall Mounting Kits give you the flexibility to use it in a multitude of scenarios. The rugged metal enclosure is IP30 rated to prevent objects larger than 2.5mm from getting inside and has an extended operating temperature range of -40°F-167°F (40°C-75°C). The clear diagnostic LEDs show the status of the devices at a glance.

Designed for Demanding Environments

This network switch is deal for industrial settings and centralized control stations where device reliability is essential and environmental conditions fluctuate. The compact form factor makes it an ideal solution for Industrial Automation and IP Surveillance.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: I51G-ETHERNET-SWITCH
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Model: I51G
Product Name: I51G Ethernet Switch
Product Condition: New
Packaged Quantity: 1
Product Type: Ethernet Switch
Technical Information
Features:

• IP30
• Fanless
• Plug and Play
• Energy Efficient

Interfaces/Ports
Total Number of Network Ports: 5
Network (RJ-45): Yes
Port/Expansion Slot Details: 5 x Gigabit Ethernet Network
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Network & Communication
Layer Supported: 2
Networking Standards:

• IEEE 802.1p
• IEEE 802.3i
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3x

Management & Protocols
Manageable: No
Reliability
MTBF: 556710 Hour
Power Description
Input Voltage:

• 9 V DC
• 60 V DC

Power Source: DC
Plug/Connector Type: Terminal Block
Physical Characteristics
Color Family: Black
Product Color: Black
Product Material: Metal
Form Factor:

• DIN Rail Mountable
• Wall Mountable
• Compact

Height: 26 mm
Width: 60 mm
Length: 100 mm
Weight (Approximate): 221.7 g
Miscellaneous
Package Contents:

• I51G Ethernet Switch
• 1 x 3-Pin Terminal Block
• 1 x DIN Rail Mounting Kit
• 1 x Mounting Ear Kit
• 1 x Quick-Start Guide

Application/Usage:

• Industrial
• Network
• IP Surveillance Network
• Automation Industry
• Printer
• Small Office
• Home Office

TAA Compliant: Yes
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 2 Year
