StarTech.com Hybrid Fiber Optic Audio/Video Cable

Marketing Information

Route this Ultra High Speed HDMI 2.1 Hybrid Active Optical Cable (AOC) through office plenum spaces for long distance transmission of 8K 60Hz video and high quality audio.

Hybrid AOC Construction

The HDMI 2.1 AOC features a hybrid construction consisting of fiber optic cores and copper conductors. This enables the offloading of low-bandwidth signals (EDID/HDCP/eARC) to maintain high-bandwidth transmission of 8K 60Hz video over fiber. The fiber optic inner cores and shielded copper conductors greatly reduce EMI for optimal signal quality across longer distances.

Full-Featured HDMI 2.1

The 8K HDMI Fiber Optic Cable supports full HDMI 2.1 specifications:

• High Bit Rate 3 (HBR3) supports... up to 48Gbps bandwidth for higher refresh rates
• High Dynamic Range (HDR10+) with 12-bit processing for higher contrast ratio and vibrant, cinematic picture quality
• Enhanced Audio Return Channel (eARC) for uncompressed 7.1 and 32-channel audio
• Display Stream Compression 1.2a (DSC) for maximum resolution output
• Forward Error Correction to manage data transmission errors
• High-Bandwidth Digital Content Protection (HDCP 2.3) for a secure connection between source and display

Flexible Plenum-Rated Cabling

This Plenum-Rated HDMI 2.1 Cable features a CMP-rated cable jacket with low-smoke and flame characteristics. It is ideal for use in plenum spaces in buildings (e.g., ceilings and in-wall installations). The optical fiber core is reinforced with Aramid strands for tensile strength, and is rated to withstand over 6,000 bending cycles at 120 degrees. This protects the cable from damage when routing through tight spaces requiring multiple bends.

The 4.6mm (0.18in) cable outer diameter is flexible and slimmer than typical passive HDMI cables, making it suitable for installation in space-constrained environments.

Please Note:

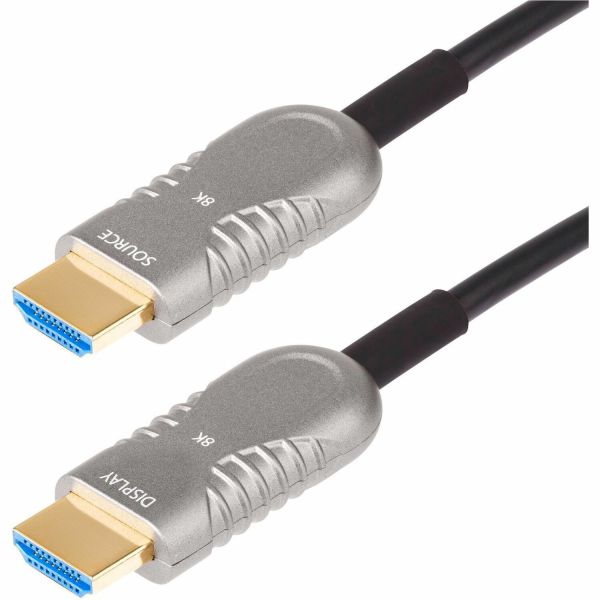

This cable is unidirectional and must be installed in a specific direction. Please refer to the SOURCE and DISPLAY labels on the HDMI connectors to ensure that each end corresponds with the correct hardware.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: 8KA50FHDMICABLE
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Hybrid Fiber Optic Audio/Video Cable
Packaged Quantity: 1 / Each
Product Type: A/V Cable
Technical Information
Cable Type: Hybrid Fiber Optic
Cable Length: 15.24 m
Connector Type on First End: HDMI 2.1 Digital Audio/Video - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x HDMI 2.1 Digital Audio/Video - Male
Connector Type on Second End: HDMI 2.1 Digital Audio/Video - Male
Connector Gender on Second End: Male
Connector on Second End Details: 1 x HDMI 2.1 Digital Audio/Video - Male
Connector Plating: Gold
Shielding: Yes
Jacket Type:

• CMR
• CMP
• Plenum

Device Supported: Audio/Video Device
American Wire Gauge: 28/30 AWG
Data Transfer Rate: 48 Gbit/s
Features:

• Active
• AOC Technology
• HDR10+ Support
• Enhanced Audio Return Channel (eARC)
• Extended Display Identification Data (EDID)
• HDCP
• Display Stream Compression (DSC)
• HDCP 2.3
• Damage Resistant
• Flexible
• Display Stream Compression (DSC) 1.2a

Physical Characteristics
Color Family: Black
Product Color: Black
Product Material:

• Zinc Alloy
• Copper

Shielding Material: Aluminum-polyester Foil
Jacket Material: Polyvinyl Chloride (PVC)
Material Details:

Copper - Conductor

Miscellaneous
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty: 2 Year
