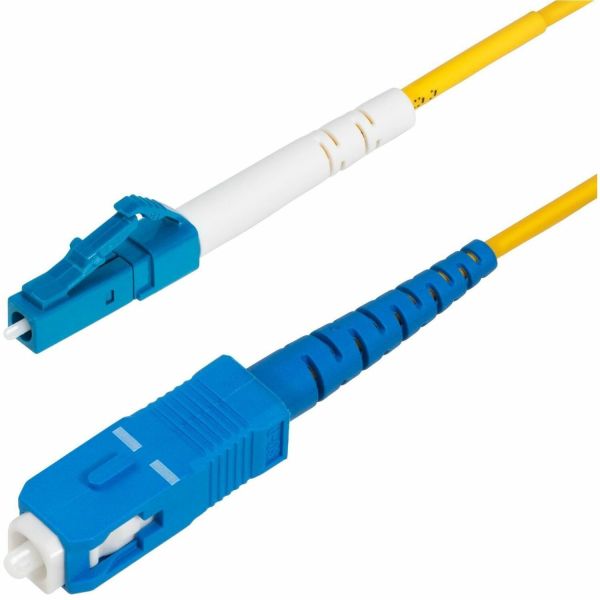

StarTech.com Single Mode Fiber Cable - LC to SC

Marketing Information

OS2 LC to SC Single Mode Simplex Fiber Optic Patch cable facilitates connectivity across 40G/100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, improving channel isolation for optimal signal strength over long distances.

Compatibility

Connect to single-fiber networking devices including simplex patch panels, SFP transceivers, and fiber NICs. This 9/125µm OS2 simplex single mode fiber patch cord is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments.

Engineered for Optimal Performance

Precision-manufactured ceramic ferrules ensure accurate fiber alignment for an insertion... loss below 0.3dB. Ultra Physical Contact (UPC)-polished LC to SC fiber ends greatly improve return loss characteristics over older PC polishing techniques. The Bend Insensitive fiber core is surrounded by a layer of low refractive index material. This material reduces the amount of light that can escape the fiber cable by reflecting the light back into the fiber. The OS2 fiber patch cord is engineered for low attenuation and performance that exceeds ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards.

LSZH Cable Jacket

Housed in a Low-Smoke Zero-Halogen (LSZH) flame-retardant jacket, the OS2 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.

Each OS2 fiber cable is individually tested for insertion loss performance and includes a test report, for guaranteed compatibility and 100% reliability.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: SPSMLCSC-OS2-5M
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Single Mode Fiber Cable - LC to SC
Packaged Quantity: 1
Product Type: Network Cable
Technical Information
Cable Type: Fibre Optic
Cable Characteristic: Patch Cable
Fiber Optic Mode: Single-mode
Fiber Type: Simplex
Fiber Optic Cable Core/Cladding Specification: 9/125 µm
Fiber Category: OS2
Cable Length: 5 m
Connector Type on First End: LC Network
Connector Gender on First End: Male
Connector on First End Details: 1 x LC Network - Male
Connector Type on Second End: SC Network
Connector Gender on Second End: Male
Connector on Second End Details: 1 x SC Network - Male
Jacket Type: LSZH
Device Supported:

• Network Device
• Patch Panel
• Server
• Switch
• Storage Device

Data Transfer Rate: 100 Gbit/s
Features:

• Bend Insensitive
• Ultra Physical Contact (UPC)
• Polished Connector (PC)
• Flame Retardant
• EMI Protection
• Passive

Physical Characteristics
Color Family: Yellow
Product Color: Yellow
Product Material: Polypropylene
Height: 10.2 mm
Width: 10.2 mm
Warranty
Limited Warranty: Lifetime
