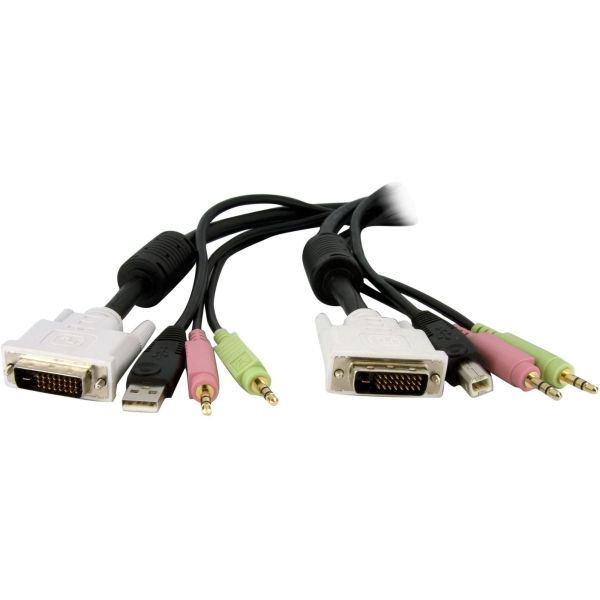

StarTech.com 6ft 4-in-1 USB Dual Link DVI-D KVM Switch Cable w/ Audio & Microphone

Marketing Information

The DVID4N1USB6 6ft 4-in-1 USB Dual Link DVI-D KVM Switch Cable w/ Audio & Microphone integrates dual link DVI video quality with USB mouse, keyboard, 3.5mm audio out and microphone connections into a single, compact cable.

The 4-in-1 KVM cable is a cost-effective and convenient solution that's suitable for use with dual link DVI supported USB KVM switches, allowing you to share a USB peripheral set between two computers configured for high definition output.

Backed by a StarTech.com Lifetime Warranty.

Works with: Compatible StarTech.com KVMs can be found under the Accessories section. Aten models (CS1642, CS1644, CS1784, CS1782, CS1762, CS1764) Avocent models (2SVDVI10-001, 4SVDVI10-001, SC4UAD, SC420, SC440, S...C540) Belkin models (F1DN102D, F1DN104D, F1DD102L, F1DD104L) Cables to go models (52047, 52048)

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: DVID4N1USB6
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 6ft 4-in-1 USB Dual Link DVI-D KVM Switch Cable w/ Audio & Microphone
Packaged Quantity: 1 Each
Product Type: KVM Cable
Technical Information
Cable Type: DVI/Mini-phone/USB
Cable Length: 1.83 m
Connector Type on First End:

• DVI-D (Dual-Link) Digital Video - Male
• USB 2.0 Type A - Male
• Mini-phone Stereo Audio - Male

Connector on First End Details:

• 1 x 25-pin DVI-D (Dual-Link) Digital Video - Male
• 1 x 4-pin USB 2.0 Type A - Male
• 2 x Mini-phone Stereo Audio - Male

Connector Type on Second End:

• DVI-D (Dual-Link) Digital Video - Male
• USB 2.0 Type B - Male
• Mini-phone Stereo Audio - Male

Connector on Second End Details:

• 1 x 25-pin DVI-D (Dual-Link) Digital Video - Male
• 1 x 4-pin USB 2.0 Type B - Male
• 2 x Mini-phone Stereo Audio - Male

Conductor: Copper
Device Supported:

• Audio/Video Device
• Keyboard/Mouse
• Microphone
• KVM Switch
• TV
• HDTV
• Peripheral Device
• Computer

Data Transfer Rate: 7.9 Gbit/s
Supported Resolution: 2560 x 1600
Physical Characteristics
Color Family: Black
Product Color: Black
Jacket Material: Polyvinyl Chloride (PVC)
Weight (Approximate): 456 g
Shipping Height: 39.88 mm
Shipping Width: 255.02 mm
Miscellaneous
Compatibility:

StarTech KVM Switches:

• SV431DVIUAHR
• SV231QDVIUA
• SV431DVIDDU
• SV431DDUSB
• SV431UADVI
• SV431DVIUA
• SV231DVIDDU
• SV231DDUSB
• SV231UADVI

Aten KVM Switches:

• CS1642
• CS1644
• CS1784
• CS1782
• CS1762
• CS1764

Avocent KVM Switches:

• 2SVDVI10-001
• 4SVDVI10-001
• SV4UAD
• SC420
• SC440
• SC540

Belkin KVM Switches:

• F1DN102D
• F1DN104D
• F1DD102L
• F1DD104L

Cables to go KVM Switches:

• 52047
• 52048
