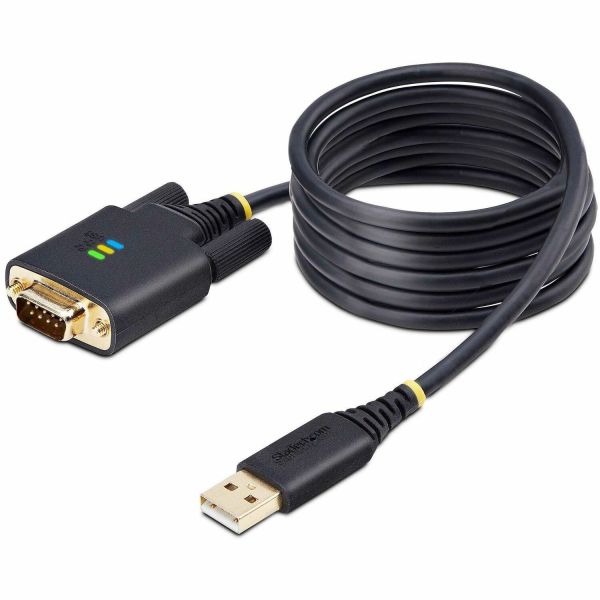

StarTech.com Serial/USB Data Transfer Cable
Cable Length | 2 m |
---|---|
Cable Type | Serial/USB |
Product Type | Data Transfer Cable |
Brand Name | StarTech.com |
Connector Type on First End | USB 2.0 Type A - Male |
Connector Type on Second End | D-sub RS-232 Serial - Male |
Product Color | Black |
Color Family | Black |
Environmental Compliance | Restriction of Hazardous Substances (RoHS)/Waste Electrical and Electronic Equipment Directive (WEEE) |
Ethics - Environment | Rating Coming Soon |
Ethics - Animal | Rating Coming Soon |
Ethics - Human | Rating Coming Soon |
Ethics - Integrity | Rating Coming Soon |
Ethics - Durability | Rating Coming Soon |
Ethics - Alert | Rating Coming Soon |
Description
Add RS-232 serial communication support to USB-A enabled Data Terminal Equipment (DTE - e.g., desktop or laptop), using this 6.6-foot (2-meter) straight through USB to Serial Adapter Cable.
Serial Port Expansion
The USB Serial Adapter adds an RS-232 serial DB/DE-9 (male) connector to a desktop or laptop via a USB Type-A port. Secure the adapter to a serial device, using pre-installed and removable slotted D-Sub thumbscrews or install the included DB-9 Nuts for compatibility with other serial peripheral devices or cables.
LED Indicators
Data transmission and reception LED indicators on the adapter provide real-time monitoring of port activity. The USB LED indicates when the adapter has successfully enum...erated on the desktop or laptop. All the LEDs aid with diagnostics and troubleshooting.
Seamless Connectivity
The adapter is compatible with Windows, macOS, ChromeOS, and Linux. Drivers automatically install to Windows 7 and newer versions, macOS 10.15 and above, and Linux. The USB to RS-232 adapter features COM retention, which automatically reassigns the COM port value if the cable is disconnected and reconnected, or if the system is rebooted.
Built To Last
The rugged TPE construction and Level-4 ESD protection (15kV air and 8kV contact) enhance the reliability and longevity of the USB to Serial Adapter. Copper shielding minimizes Electromagnetic and Radio Frequency Interference (EMI and RFI). Gold-plated connectors enhance signal conductivity.
Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: 1P6FFC-USB-SERIAL
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Serial/USB Data Transfer Cable
Packaged Quantity: 1
Product Type: Data Transfer Cable
Technical Information
Cable Type: Serial/USB
Cable Length: 2 m
Connector Type on First End: USB 2.0 Type A - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x 4-pin USB 2.0 Type A - Male
Connector Type on Second End: D-sub RS-232 Serial - Male
Connector Gender on Second End: Male
Connector on Second End Details: 1 x 9-pin D-Sub RS-232 Serial - Male
Connector Plating: Gold
Shielding: Yes
Device Supported:
- Desktop Computer
- Notebook
- Peripheral Device
- Monitor
- Sensor
- Barcode Scanner
- Receipt Printer
- POS Device
- Digital Signage
- LED
Data Transfer Rate: 480 Mbit/s
Features:
- ESD Protection
- LED Indicator
- Rugged
- EMI/RF Protection
- Molded
Physical Characteristics
Color Family: Black
Product Color: Black
Product Material: Thermoplastic Elastomer (TPE)
Shielding Material: Copper
Material Details:
TPE - Housing
Weight (Approximate): 25.5 g
Miscellaneous
Package Contents:
- Serial/USB Data Transfer Cable
- 2 x DB9 Nuts
- 1 x Quick-Start Guide
Operating System Compatibility:
- Windows
- Mac OS
- Linux
- ChromeOS
- Windows 7
- macOS 10.15+
- Windows 10
- Windows 11
- Windows 8
- Windows Server 2012
- Windows Server 2016
- Windows Server 2019
- Windows Server 2022
- Windows Server 2012 R2
- Windows Server 2008 R2
- Mac OS 10.9
- Windows 8.1
- Linux 4.15.x+ LTS
- Mac OS Mavericks
- Mac OS Yosemite
- Mac OS EI Captain
- Mac OS Sierra
- Mac OS High Sierra
- macOS Mojave
- macOS Catalina
- macOS Big Sur
- macOS Monterey
- macOS Ventura
- macOS Sonoma
- Windows 10 (ARM)
- windows 11 (ARM)
- macOS Catalina 10.15
- macOS Ventura 13.0
- macOS Sonoma 14.0
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty: 2 Year
