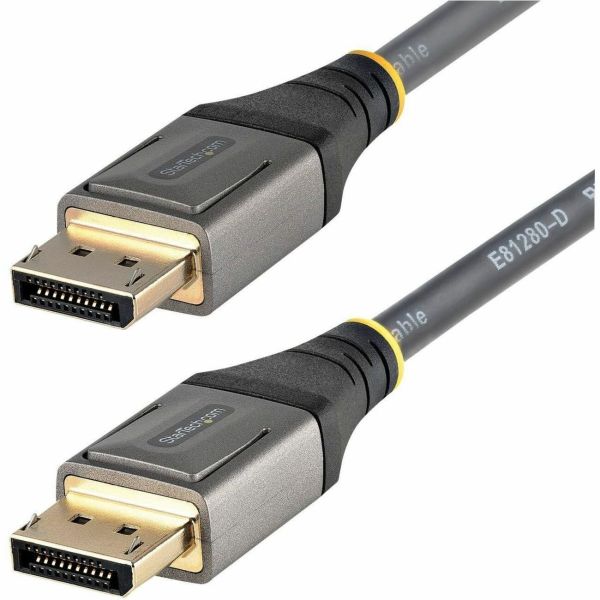

StarTech.com Displayport 1.4 8K Cable

Marketing Information

This DisplayPort 1.4 cable connects your DisplayPort™ laptop or desktop computer to an ultra-high definition 8K monitor, TV or projector. It supports resolutions up to 8K (7680 x 4320) at 60Hz.

The DisplayPort monitor cable provides the essential connection to support the next generation of ultra-high definition video.

This cable is VESA® Certified to ensure full compliance and efficient operation of the higher link rate of HBR3. It has been tested to meet all DP 1.4 specifications to ensure quality and reliability.

The Superior Performance of DisplayPort 1.4

This 8K DisplayPort cable supports all DP 1.4 features:

• High Bit Rate 3 (HBR3) Bandwidths of 32.4 Gbps supporting the lat...est in industry standards
• High Dynamic Range (HDR10) for higher contrast ratio and vivid colors
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• Display Stream Compression 1.2 (DSC) for maximum resolution output
• Forward Error Correction to manage data transmission errors
• High-Bandwidth Digital Content Protection (HDCP 2.2) for a secure connection between source and display
• 32 Uncompressed Digital Audio Channels

Cable Key Features

Aluminum-mylar foil with braided shielding improve EMI protection Long lasting flexible TPE jacket & strain relief (TPE is non-toxic & halogen free for environmental sustainability)

Connector Key Features

Die-cast aluminium sub-structure shielding improves signal integrity & prevents signal degradation Corrosion-free gold-plated connectors ensure premium video quality & enhanced reliability Tested to withstand 5000+ insertions

8K: Enabling Business Continuity

8K has a resolution of 7680 x 4320 and is also known as 4320p and Ultra High Definition (UHD). Suitable for digital signage and other commercial displays that require the highest available resolution. This cable is backward compatible with 4K and 5K displays making it the perfect peripheral to start futureproofing your cabling infrastructure.

Comprehensive Product Testing & Expert Technical Support

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have a broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.

DP14VMM2M is backed by a StarTech.com lifetime warranty.

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: DP14VMM2M
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Displayport 1.4 8K Cable
Packaged Quantity: 1
Product Type: Video Cable
Technical Information
Cable Type: DisplayPort
Cable Length: 2 m
Connector Type on First End: DisplayPort 1.4 Digital Audio/Video - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male
Connector Type on Second End: DisplayPort 1.4 Digital Audio/Video - Male
Connector Gender on Second End: Male
Connector on Second End Details: 1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male
Connector Plating: Gold
Shielding: Yes
Device Supported:

• Audio/Video Device
• Monitor
• Workstation
• Notebook
• Desktop Computer
• TV
• Projector
• Digital Signage Player
• Graphics Card

American Wire Gauge: 34 AWG
Data Transfer Rate: 32.4 Gbit/s
Supported Resolution: 7680 x 4320
Features:

• HDR Support
• Multi-Stream Transport (MST) Support
• EMI Protection
• Latching Connector
• Molded
• Strain Relief
• Stress Resistant
• Bendable
• Halogen Free
• Display Stream Compression (DSC) 1.2
• Forward Error Correction (FEC) Support
• HDCP 2.2
• Flexible
• Corrosion-free
• Passive

Physical Characteristics
Color Family: Dual Colour
Product Color:

• Black
• Grey

Jacket Material: Thermoplastic Elastomer (TPE)
Miscellaneous
Compatibility: Radeon Vega Frontier/Pro WX Series Graphic Cards:

• 2100
• 3100
• 5100
• 7100
• W5500
• Pro Duo 2000

Nvidia Quadrop Graphic Cards:

• GP100
• GV100
• RTX 4000

Dell XPS 11th Gen Laptops
HP Z2 G8 Tower Workstation
