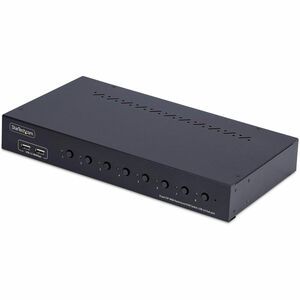

StarTech.com KVM Switchbox

Marketing Information

The 4K 60Hz rackmount KVM switch allows switching between eight DisplayPort-enabled computers, sharing a keyboard, mouse, audio, 4-port USB 2.0 hub, and a 4K 60Hz DisplayPort 1.2 monitor. This enables effortless multi-system management, improved workspace efficiency, and enhanced productivity.

No Drivers or Software

The TAA-Compliant 8-Port KVM Switch is universally compatible, providing BIOS-level control and working with any operating system, including Windows, Windows ARM, macOS, ChromeOS, and Linux. It is also compatible with all hardware platforms such as Intel, AMD, SnapDragon/ARM, and Apple Silicon.

Multiple Switching Options

Ensures efficient and user-friendly operation for ...multi-server administration with switching via push-buttons or hotkeys, an audible buzzer for confirmation, and LEDs for quick visual port selection status.

Rack Mount Kit Included

The KVM switch offers a space-saving solution for managing multiple servers directly within a rack. It includes rack-mount brackets for installation in 1U of rack space on network racks and is compatible with 19-inch server racks that have a mounting depth of 6.5 inches (165mm) or more. It also complies with ANSI/EIA RS-310-D standards.

To ensure flexibility to choose the best cables for your specific installation, the KVM switch does not include cables. StarTech.com offers a wide variety of DisplayPort, USB, and 3.5mm audio cables in assorted lengths to suit different installation needs.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• USB Event Monitoring Utility: Track and log connected USB devices.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: R8AD122-KVM-SWITCH
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: KVM Switchbox
Packaged Quantity: 1
Product Type: KVM Switchbox
Technical Information
Connectivity Technology: Wired
Maximum Data Transfer Rate: 60 MB/s
Features: LED Indicator
Video
Graphic Mode: 4K
Maximum Video Resolution: 3840 x 2160
Interfaces/Ports
USB: Yes
USB Standard: USB 2.0
USB 2.0: Yes
DisplayPort: Yes
Number of USB Ports: 12
Number of DisplayPorts: 9
Environmental Conditions
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: 40°C
Power Description
Input Voltage Range: 100 - 240 AC
Physical Characteristics
Form Factor: Rack-mountable
Rack Height: 1U
Height: 43.2 mm
Width: 165.1 mm
Weight (Approximate): 1.54 kg
Miscellaneous
TAA Compliant: Yes
