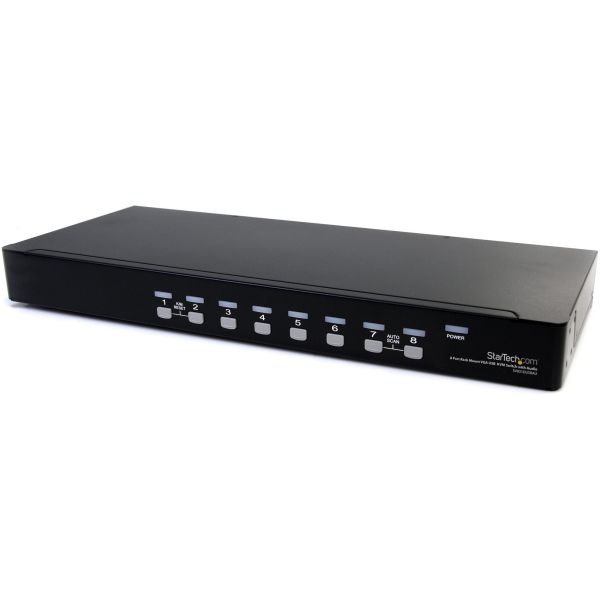

StarTech.com 8 Port Rack Mount USB VGA KVM Switch w/ Audio

Marketing Information

The SV831DUSBAU 8 Port Rack Mount USB VGA KVM Switch (with Audio Cables Included) allows you to control up to 8 USB computers using a single keyboard, mouse and monitor, and features Audio and Microphone ports to switch between audio signals as well as PC ports.

Based on a 1U rack mountable slim form factor design, this 8 Port USB KVM uses rear cable connections to maximize space efficiency. Multiple KVM units can also be connected (cascaded) together for control of up to 64 computers, ensuring a scalable KVM solution that can be expanded as necessary.

To ensure seamless operation, the switch features automatic and manual scan modes, supports both hot-key and front panel push-button switching, and features a convenient OSD (o...n-screen display) for added configuration options.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

The SV831DUSBAU onlyworks with specific 2-in-1 VGA and USB cables (soldseparately), a list ofStarTech.com approved cables are below:

6ft Ultra Thin USB VGA 2-in-1 KVM Cable 6ft Ultra Thin USB VGA 2-in-1 KVM Cable 10 ft Ultra Thin USB VGA 2-in-1 KVM Cable 15ft Ultra Thin USB VGA 2-in-1 KVM Cable

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: SV831DUSBAU
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Line: StarView
Product Name: 8 Port Rack Mount USB VGA KVM Switch w/ Audio
Packaged Quantity: 1
Product Type: KVM Switchbox
Technical Information
Number of Computers Supported: 8
Daisy Chain Supported: Yes
Video
Maximum Video Resolution: 1920 x 1440
Interfaces/Ports
USB: Yes
VGA: Yes
Number of USB Ports: 2
Number of VGA Ports: 9
Power Description
Input Voltage:

• 120 V AC
• 230 V AC

Input Voltage Range: 110V AC to 240V AC
Physical Characteristics
Color Family: Black
Product Color: Black
Form Factor:

• Rack-mountable
• Desktop

Rack Height: 1U
Height: 45.7 mm
Width: 541 mm
Depth: 180.3 mm
Weight (Approximate): 2.60 kg
Miscellaneous
Package Contents:

• 8 Port Rack Mount USB VGA KVM Switch w/ Audio
• Power Adapter
• 8 x 6ft. Green Audio Cables
• 8 x 6ft. Red Audio Cables

TAA Compliant: Yes
Warranty
Limited Warranty: 2 Year
