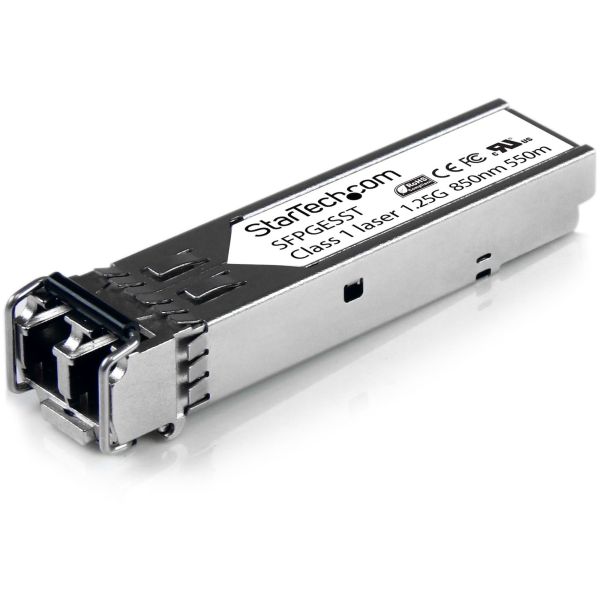

StarTech.com Cisco SFP-GE-S Compatible SFP Fiber Module - 1000BASE-SX

Marketing Information

The SFPGESST is a Cisco SFP-GE-S compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).

Technical Specifications:

• Wavelength: 850nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 550 m (1804 ft)
• MTBF: 3,381,761 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: SFPGESST
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Cisco SFP-GE-S Compatible SFP Fiber Module - 1000BASE-SX
Packaged Quantity: 1 Each
Product Type: SFP (mini-GBIC)
Technical Information
Application/Usage:

• Data Networking
• Optical Network

Interfaces/Ports
Total Number of Ports: 1
Connector Type: LC
Interfaces/Ports Details: 1 x LC Duplex 1000Base-SX Network
Media & Performance
Media Type Supported: Optical Fiber
Fiber Mode Supported: Multi-mode
Ethernet Technology: 1.25 Gigabit Ethernet
Network Technology: 1000Base-SX
Physical Characteristics
Form Factor:

• Hot-pluggable
• Hot-swappable

Height: 10.2 mm
Width: 12.7 mm
Depth: 61 mm
Weight (Approximate): 17 g
Miscellaneous
Compatibility:

• MSA Compliant

Cisco Switches:

• IE3400
• IE3300
• IE3200
• ME1200
• ME2400

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: Lifetime
