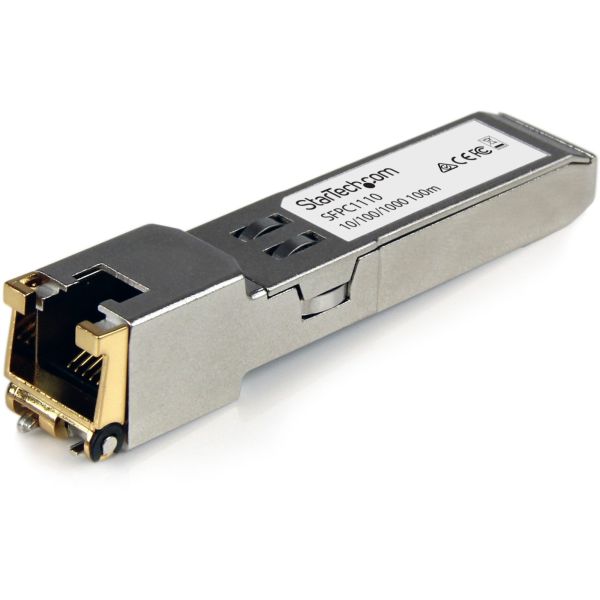

StarTech.com Cisco SFP-GE-T Compatible SFP Transceiver Module - 1000BASE-T

Marketing Information

The SFPC1110 is a Cisco SFP-GE-T compatible copper transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over copper cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).

Technical Specifications:

• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Copper
• Connection Type: RJ45 Connector
• Maximum Transfer Distance: 100 m (328 ft)
• MTBF: 4,655,371 hours
• Power Consumption: Less than 1.3 Watts
• Digital Diagnostics Monitoring (DDM): No

This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: SFPC1110
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Cisco SFP-GE-T Compatible SFP Transceiver Module - 1000BASE-T
Packaged Quantity: 1 Each
Product Type: SFP (mini-GBIC)
Technical Information
Application/Usage: Data Networking
Interfaces/Ports
Total Number of Ports: 1
Connector Type: RJ-45
Interfaces/Ports Details: 1 x RJ-45 10/100/1000Base-T Network LAN
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
Physical Characteristics
Form Factor: Hot-pluggable
Height: 12.7 mm
Width: 12.7 mm
Depth: 71.1 mm
Weight (Approximate): 45.4 g
Miscellaneous
Additional Information:

• Fully compliant with MSA standards, this hot pluggable module can be installed into any networking device with an MSA compliant or Cisco compliant port
• A convenient way to add a copper connection to an SFP type switch that would typically used for fiber SFPs

Compatibility:

• MSA Compliant

Cisco Switches:

• IE3400
• IE3300
• IE3200

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: Lifetime
