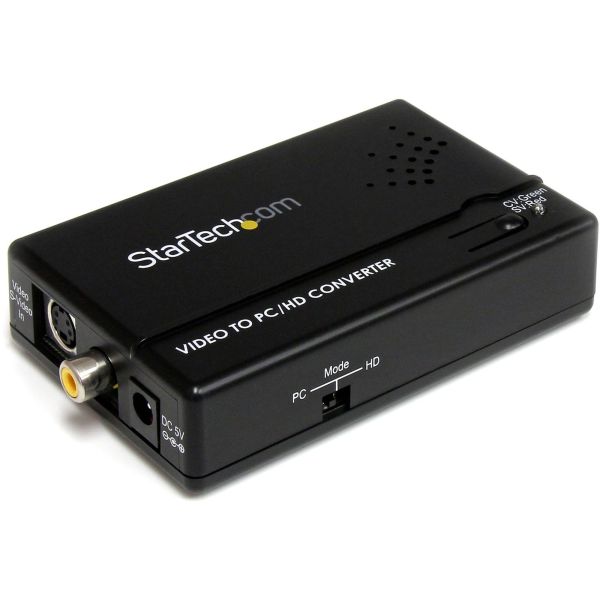

StarTech.com Composite and S-Video to VGA Video Scan Converter

Marketing Information

The VID2VGATV2 Composite and S-Video to VGA Video Scan Converter (with Scaler) provides a simple way to convert Composite or S-Video signals to VGA (or Component RCA) output, for use with computer monitors, projectors or HDTV sets.

Equipped with an On-Screen Display (OSD) menu and dip switches for simple configuration and selection of your video output settings, this compact video scaler installs quickly and easily for a true plug-and-play experience. An integrated scaler circuit dynamically converts the S-Video or Composite video input signal, giving you multiple output resolutions to choose from, to ensure compatibility with your display or projector.

Plus, the Component/S-Video-VGA Converter includes a VGA to Component (RC...A) breakout cable, which enables you to connect to TV sets that are not equipped with a VGA port.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: VID2VGATV2
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Composite and S-Video to VGA Video Scan Converter
Packaged Quantity: 1
Product Type: Signal Converter
Technical Information
Functions:

• Signal Conversion
• Video Scaling

Video Signal Format:

• PAL
• NTSC

Maximum Resolution: 1600 x 1200
Video Formats: HDTV
Platform Supported: PC
Analog Signal: Yes
Interfaces/Ports
VGA: Yes
Number of VGA Outputs: 1
S-Video: Yes
Number of S-Video Inputs: 1
Composite Video: Yes
Number of Composite Video Inputs: 1
Physical Characteristics
Color Family: Black
Product Color: Black
Form Factor: External
Height: 25.4 mm
Width: 63.5 mm
Length: 111.8 mm
Weight (Approximate): 86 g
Miscellaneous
Additional Information:

• Automatically detects the input resolution while allowing you to customize the output resolution and refresh rate using the On-Screen Display, ensuring compatibility with your display or projector
• Adjustments for brightness, contrast, color, RGB level and horizontal/vertical positioning offers flexibility
• Offers a pure hardware design, with no software installation required, delivering an easy-to-use and time-saving solution

Certifications & Standards:

• CE
• FCC

Environmental Compliance:

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 2 Year
