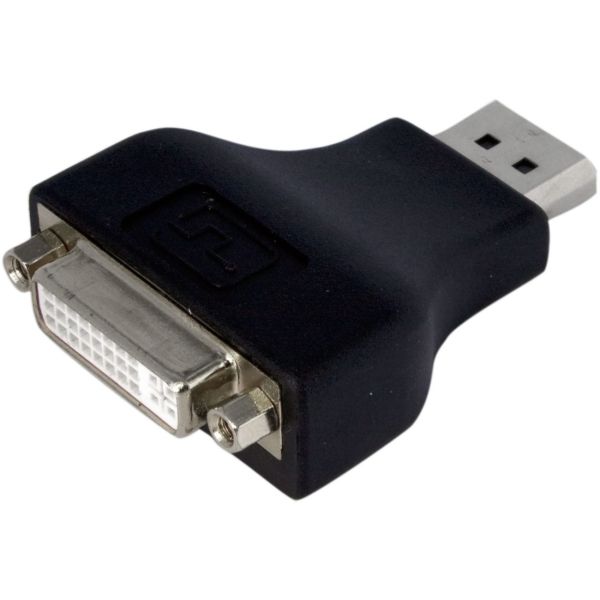

StarTech.com DisplayPort DVI Video Adapter Converter

Marketing Information
The StarTech.com DP2DVIADAP DisplayPort DVI adapter lets you connect a DVI-D display to a DisplayPort video source (e.g. DisplayPort video cards, etc.), eliminating the expense of having to upgrade to a DisplayPort enabled display while providing a hassle-free connection to any DisplayPort video card/signal source.

The DVI/DisplayPort adapter supports display resolutions up to 1920x1200, allowing you to take full advantage of single link DVI capability.

DP2DVIADAP is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: DP2DVIADAP
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Model: DP2DVIADAP
Product Name: DisplayPort DVI Video Adapter Converter
Packaged Quantity: 1 Each
Product Type: Video Adapter
Technical Information
Adapter Type: DisplayPort/DVI
Connector Type on First End: DVI-D Digital Video - Female
Connector Gender on First End: Female
Connector on First End Details: 1 x 29-pin DVI-D Digital Video Female
Connector Type on Second End: DisplayPort Digital Audio/Video - Male
Connector Gender on Second End: Male
Connector on Second End Details: 1 x 20-pin DisplayPort Digital Audio/Video Male
Maximum Resolution Supported: 1920 x 1200
Features:

• Passive
• HDCP 1.3
• Extended Display Identification Data (EDID)

Physical Characteristics
Color Family: Black
Product Color: Black
Height: 10.2 mm
Width: 40.6 mm
Length: 63.5 mm
Weight (Approximate): 18 g
Miscellaneous
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
