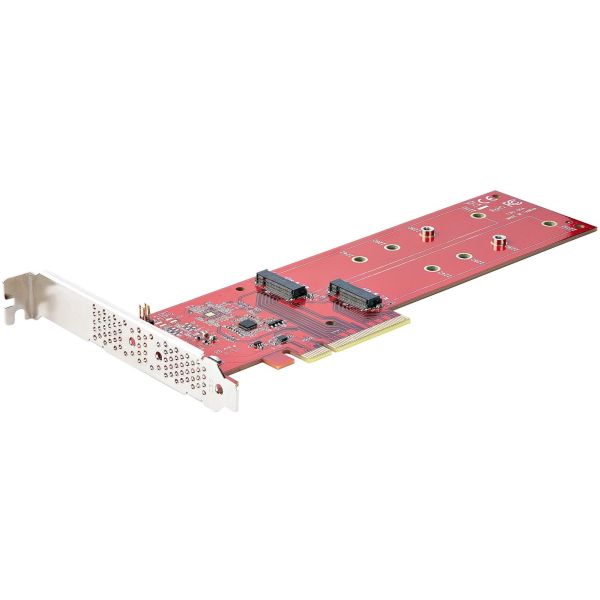

StarTech.com M.2 to PCI Express Adapter

Marketing Information

This Dual M.2 PCIe SSD Adapter adds two high performance PCIe M.2 SSDs (NVMe and AHCI) into the PCIe x8 or x16 slot of a desktop, workstation, or server.

Boost System Performance

Take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives, with read and write speeds up to 7.8GBps per drive.

Access two M.2 PCIe SSDs simultaneously

No on-board chip leads to wide system compatibility. This card requires PCIe bifurcation, meaning it easily integrates into any system with an available x8 or x16 PCIe slot that supports PCIe bifurcation.

Utilize software RAID, such as Storage Spaces (Microsoft) or mdraid/mdadm (Linux), to build a RAID array, adding redundanc...y or enhancing system performance.

Wide Compatibility

The PCIe M.2 NGFF (M Key or B+M Key) adapter supports PCIe NVMe and PCIe AHCI M.2 SSDs including 2242, 2260, 2280 and 22110mm drives. The PCIe M.2 Adapter Card does not require any software or drivers, meaning it works with most operating systems, if the computer/motherboard supports bifurcation.

Vented Brackets

The included full and low-profile vented brackets increase air flow to improve heat dissipation, which aids in maintaining optimal and reliable operating temperatures.

The DUAL-M2-PCIE-CARD-B is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: DUALM2PCIECARDB
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: M.2 to PCI Express Adapter
Packaged Quantity: 1
Product Type: M.2 NVMe to PCIe Adapter
Physical Characteristics
Product Color: Red
Height: 22 mm
Width: 102 mm
Length: 228 mm
Weight (Approximate): 74 g
Miscellaneous
Additional Information:

Drive Connectors: 2 - M.2 (NVMe, M-Key, PCIe x4)

Host Connectors: 1 - PCI Express x8

Interface: M.2 PCIe

Bus Type: PCI Express

Number of Drives: 2

Drive Size: 22 mm - M.2 NVMe

Compatible Drive Types: M.2 (PCIe, NVMe, M-Key, NGFF)

Drive Installation: Fixed

Supported Drive Height(s):
2242
2260
2280
22110

Certifications & Standards:

• CE
• FCC

Country of Origin: Taiwan
