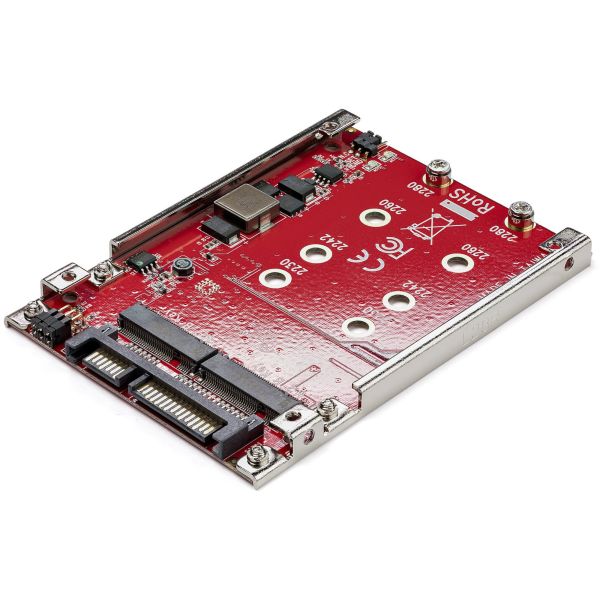

StarTech.com Dual-Slot M.2 Drive to SATA Adapter for 2.5" Drive Bay - RAID

Marketing Information

Boost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 SATA drives instead of a SATA platter drive, in a single 2.5" drive bay, and increase your storage options by configuring a powerful RAID array.

Build a RAID array to enhance system performance

The dual M.2 to SATA adapter supports multiple RAID modes, including RAID 0, 1, or spanning, helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independently of one another.

Maxim...ize file transfer speeds

The M.2 SATA SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SATA SSDs in place of a platter drive reduces your data transfer bottlenecks, giving you file transfer speeds of up to 6Gbps.

The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.

Easy installation

This open-frame adapter is easy to install as it comes with all the necessary installation hardware and doesn't require any extra software or drivers, to get you up and running quickly.

The S322M225R is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: S322M225R
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Dual-Slot M.2 Drive to SATA Adapter for 2.5" Drive Bay - RAID
Packaged Quantity: 1 Each
Product Type: M.2 to SATA Adapter
Physical Characteristics
Color Family: Red
Product Color: Red
Product Material: Steel
Height: 7.6 mm
Width: 71.1 mm
Depth: 99.1 mm
Weight (Approximate): 41 g
Miscellaneous
Additional Information:

• Drive Connectors: 2 - M.2 (SATA, B-Key, NGFF)
• Host Connectors: 1 - SATA Data & Power Combo (7+15 pin)
• Operating Temperature: +5°C to +50°C (+41°F to +122°F)
• Storage Temperature: -25°C to +70°C (-13°F to +158°F)
• Humidity: 15% to 90%
• Interface: SATA
• Number of Drives: 2
• Compatible Drive Types: M.2 (SATA, B-Key, NGFF)
• Drive Installation: Fixed
• Supported Drive Height(s): 2230; 2242; 2260;2280
• Chipset ID: ASMedia - ASM1092R
• Maximum Data Transfer Rate: 6 Gbps
• TRIM Support: Yes
• S.M.A.R.T. Support: Yes
• Type and Rate: SATA III (6 Gbps)
• Port Multiplier: Yes
• Hardware Raid Supported: Yes
• Supported RAID Modes: RAID 0 (Striped Disks); RAID 1 (Mirrored Disks); JBOD - (Just a Bunch of Disks); BIG (Spanning or Concatenation)

Country of Origin: Taiwan
TAA Compliant: Yes
Environmental Compliance:

• Waste Electrical and Electronic Equipment Directive (WEEE)
• Restriction of Hazardous Substances (RoHS)
