StarTech.com Transceiver/Media Converter

Marketing Information

This compact Gigabit Fiber to Ethernet Media Converter enables Cat6 or similar cabling to be upgraded to an EMI-free fiber connection. The TAA-compliant adapter is PoE powered, making it a perfect choice when external power options are unavailable.

Simplified Installation

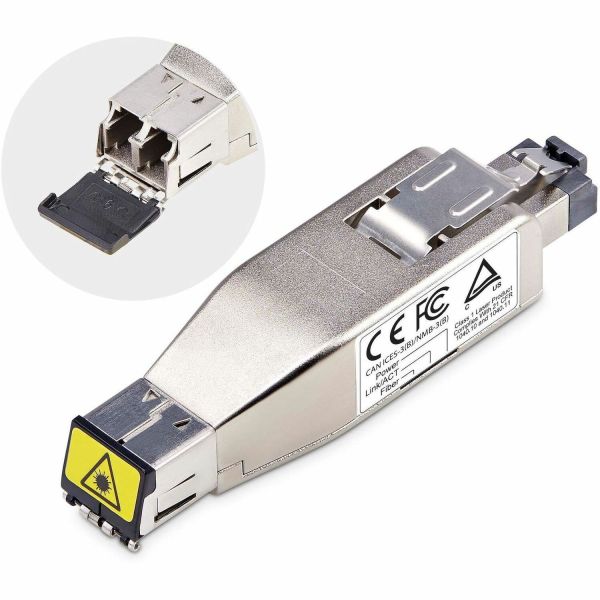

The unmanaged fiber media converter features a plug-and-play design that does not require additional software or settings to be changed. The metal housing features an IP20 rating and is an all-in-one construction with integrated LC fiber and RJ45 ports. The RJ45 side features a metal tab to ensure a reliable and secure fit and prevent accidental disconnections.

Network Features

The PoE media converter is designed to work seamles...sly with any networking equipment that is PoE-capable and supports the 802.3af standard or higher. It comes equipped with a range of PoE protection features, including Over Voltage Protection (OVP), Over Current Protection (OCP), Over Temperature Protection (OTP), and 2KV Surge Protection. The LC slot is compatible with Single-Mode (10km) and Multimode (800m) fiber cables up to 1Gbps. A spring-loaded tab protects the port when not in use. The converter supports LFPT (Link Fault Pass-Through), allowing IT administrators to monitor and assess network connectivity at a glance based on the LED behavior.

Compatibility

This LAN-to-fiber converter is ideal for upgrading computers, switches, routers, or other equipment from copper to fiber. It suits various applications, including field deployments, industrial automation, telecommunications, broadcasting, data centers, and remote networking. Experience reliable connectivity with EMI immunity over long distances with this compact (3.2×0.8×0.7in/82.39x20x17.5mm) and power-efficient (2.5W max) dongle.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: D01ML55P-FIBER-MEDIA
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Transceiver/Media Converter
Packaged Quantity: 1
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 2
Network (RJ-45): Yes
USB: Yes
Number of PoE (RJ-45) Ports: 1
PoE Port Type: PD
Number of LC Ports: 1
LC Port Type: Duplex
Media & Performance
Media Type Supported:

• Twisted Pair
• Optical Fiber

Fiber Mode Supported:

• Single-mode
• Multi-mode

Fiber Optic Cable Wavelength: 1310 nm
Maximum Data Transfer Rate: 1 Gbit/s
Maximum Distance Supported: 10 km
Network & Communication
Ethernet Technology: Gigabit Ethernet
Network Technology:

• 1000Base-T
• 1000Base-LX

Power Description
Power Source: PoE
Power Consumption: 2.50 W
Physical Characteristics
Form Factor: Compact
Height: 17.8 mm
Width: 81.3 mm
Weight (Approximate): 42.5 g
Miscellaneous
Package Contents:

• Transceiver/Media Converter
• 1 x Quick-Start Guide

Application/Usage:

• Network
• Industrial Automation Equipment
• Desktop Computer
• Networking Switch
• Router
• Data Center

Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
TAA Compliant: Yes
Warranty
Limited Warranty: 2 Year
