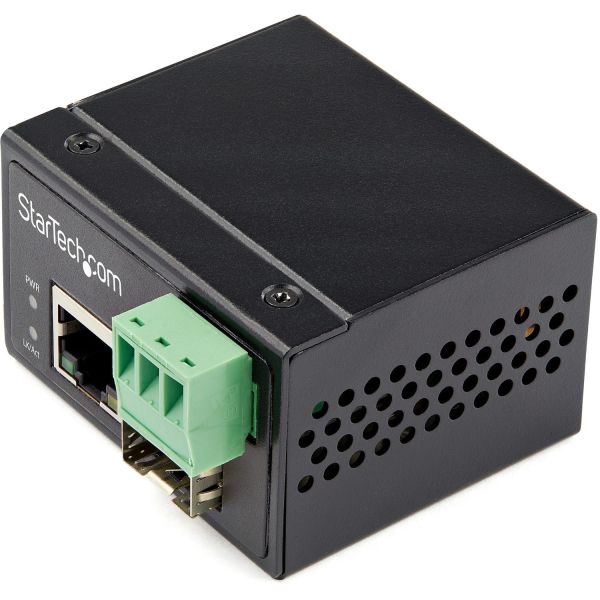

StarTech.com Transceiver/Media Converter
£89.78
Limited Stock: Only 0 available
Only 5 left
StarTech.com Transceiver/Media Converter
StarTech.com Transceiver/Media Converter is available to buy in increments of 1
Categories: Transceivers|Media Converters, Default Category
| Maximum Distance Supported | 100 m |
|---|---|
| Expansion Slot Type | SFP |
| Fiber Mode Supported | Single-mode/Multi-mode |
| Product Type | Transceiver/Media Converter |
| Power Source | Power Supply |
| Form Factor | Wall Mountable/DIN Rail Mountable |
| Network Technology | 100Base-TX/100Base-FX |
| Brand Name | StarTech.com |
| Ethernet Technology | Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Media Type Supported | Optical Fiber/Twisted Pair |
| Total Number of Ports | 1 |
| Total Number of Expansion Slots | 1 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS)/Waste Electrical and Electronic Equipment Directive (WEEE) |
| Ethics - Environment | Rating Coming Soon |
| Ethics - Animal | Rating Coming Soon |
| Ethics - Human | Rating Coming Soon |
| Ethics - Integrity | Rating Coming Soon |
| Ethics - Durability | Rating Coming Soon |
| Ethics - Alert | Rating Coming Soon |
Description
Marketing Information
Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: IMC100MSFP
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Transceiver/Media Converter
Packaged Quantity: 1
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 1
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Media & Performance
Media Type Supported:
Fiber Mode Supported:
Maximum Distance Supported: 100 m
I/O Expansions
Total Number of Expansion Slots: 1
Expansion Slot Type: SFP
Number of SFP Slots: 1
Network & Communication
Ethernet Technology: Fast Ethernet
Network Technology:
Power Description
Power Source: Power Supply
Power Consumption: 1.92 W
Plug/Connector Type:
Physical Characteristics
Form Factor:
Height: 50.8 mm
Width: 35.6 mm
Depth: 58.4 mm
Weight (Approximate): 82.2 g
Miscellaneous
Package Contents:
Environmental Compliance:
An industrial media converter that converts fiber to copper at a network endpoint.
A Flexible Solution Covering Different RequirementsThis media converter features an open SFP slot for any standard SFP to be used for the incoming fiber connection and is easily deployed across applications or fiber cable types. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation. It can be powered using 18V-36V AC or 12V -56V DC for a high degree of flexibility including applications like solar, automotive, and rail. Includes hardware for DIN rail or wall mounting.
For ...Mission-Critical ApplicationsDesigned with IP-30 housing and has an MBTF of >500,000 hrs (Telcordia/Bellcore) at 50°C and an operating temperature range of include -40 C to 75 C for durability; it's rated to various vibration, shock, and free-fall standards:
- Vibration: EN 60068-2-6
- Shock: EN 60068-2-27
- Free-Fall: EN 60068-2-32
Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.
The IMC100MSFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: IMC100MSFP
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Transceiver/Media Converter
Packaged Quantity: 1
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 1
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Media & Performance
Media Type Supported:
- Optical Fiber
- Twisted Pair
Fiber Mode Supported:
- Single-mode
- Multi-mode
Maximum Distance Supported: 100 m
I/O Expansions
Total Number of Expansion Slots: 1
Expansion Slot Type: SFP
Number of SFP Slots: 1
Network & Communication
Ethernet Technology: Fast Ethernet
Network Technology:
- 100Base-TX
- 100Base-FX
Power Description
Power Source: Power Supply
Power Consumption: 1.92 W
Plug/Connector Type:
- Terminal Block
- Type N
Physical Characteristics
Form Factor:
- Wall Mountable
- DIN Rail Mountable
Height: 50.8 mm
Width: 35.6 mm
Depth: 58.4 mm
Weight (Approximate): 82.2 g
Miscellaneous
Package Contents:
- Transceiver/Media Converter
- Mounting Hardware Kit
- Quick-Start Guide
- Terminal Block to Barrel Power Connector Adapter
- Terminal Block
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
