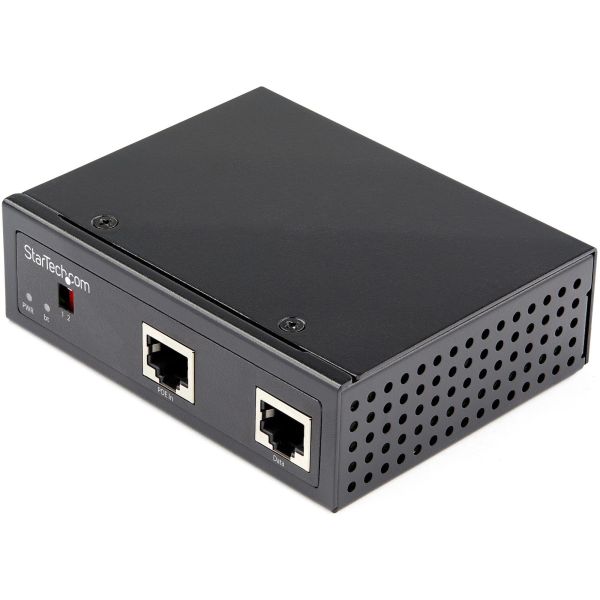

StarTech.com POESLT1G48V PoE Splitter

Marketing Information

Splits a PoE connection (max 90W) into separate data (RJ45) and DC power (terminal block) that can power any device that uses DC power between 12V-48VDC (1.5A). Power non-PoE devices using network infrastructure, where power is not available.

Power Non-PoE Devices

Perfect for using PoE to power older devices while also providing network access for monitoring and control applications. Applications include:

• Security (card swipe or proximity boxes)
• Environmental monitoring (temperature/moisture sensors)
• Telco (analog interface systems/conversion)

Straightforward Deployment

Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), and IEEE 802.3bt (PoE++ / Type 3) PoE inputs ...up to 90W and splits data and power. Power output via terminal block can be configured for 12/16/24/48V DC (1.5A).

The configuration is completed by DIP switches and the product can be wall or DIN rail mounted using the included hardware.

Designed for Harsh Environments

Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.

Vibration: EN 60068-2-6
Shock: EN 60068-2-27
Free-Fall: EN 60068-2-32

600,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.

The POESLT1G48V is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: POESLT1G48V
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Model: POESLT1G48V
Product Name: POESLT1G48V PoE Splitter
Packaged Quantity: 1 Each
Product Type: PoE Splitter
Power Description
Minimum Output Voltage: 12 V DC
Maximum Output Voltage: 48 V DC
Interfaces/Ports
Input Ports: 1 x PoE+
Output Ports:

• 1 x Ethernet
• 1 x Terminal Block

Physical Characteristics
Form Factor: DIN Rail/Wall Mountable
Height: 33 mm
Width: 81.3 mm
Length: 104.1 mm
Weight (Approximate): 150 g
Miscellaneous
Package Contents:

• POESLT1G48V PoE Splitter
• Quick-Start Guide
• Hardware Mounting Kit
• Terminal Block

Certifications & Standards:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3at
• IEEE 802.3af
• IEC 61000-4-2
• IEC 61000-4-4
• IEC 61000-4-5
• EN 60068-2-6
• EN 60068-2-27
• EN 60068-2-32
• EN60950-1

Environmental Compliance:

• Waste Electrical and Electronic Equipment Directive (WEEE)
• Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 2 Year
