StarTech.com KVM Switchbox

Marketing Information

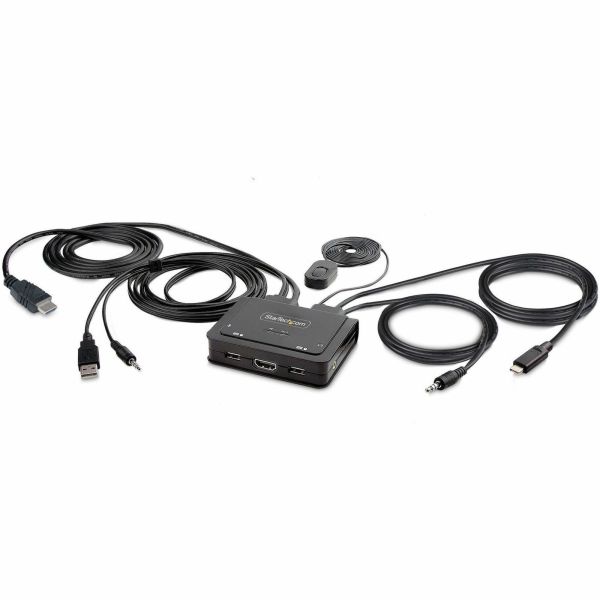

This Hybrid KVM Switch enables users to switch between a USB Type-A and HDMI-enabled desktop and a USB Type-C (DP Alt-Mode) enabled laptop, to share a keyboard, mouse, audio input/output devices, and a single 4K 60Hz HDMI monitor.

Hassle-Free Setup

The KVM switch is bus powered and features built-in HDMI, USB-A, USB-C, and 3.5mm Audio Input/Output cables. This ensures compatibility and performance between the KVM switch, monitors, and peripherals - without the need to select and purchase the cables required for those connections.

Compatibility

The 2-port KVM switch is compatible with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM works with all hardware platforms includin...g Intel, AMD, and Apple M1/M2. The USB-C host port works with USB-C, USB4, Thunderbolt 3, and Thunderbolt 4 laptops. If the desktop does not have a 4-position 3.5mm port the included 3.5mm Headset Adapter ensures compatibility out of the box.

Intuitive Control

The KVM switch offers two options to switch between hosts - a remote push button or hotkey commands. The remote push button includes a 1.5m cable for optimal placement in the setup. Independent audio switching can be achieved through the software, ensuring uninterrupted audio when switching between host devices.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• MAC Address Pass-Through Utility: Improve network security.
• USB Event Monitoring Utility: Track and log connected USB devices.
• Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: C2H46UACCBLKVM
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: KVM Switchbox
Packaged Quantity: 1
Product Type: KVM Switchbox
Technical Information
Number of Computers Supported: 2
Number of Local Users Supported: 1
Device Type: Desktop KVM
Features:

• Bus Powered
• LED Indicator

Video
Graphic Mode: 4K
Maximum Video Resolution: 3840 x 2160
Interfaces/Ports
USB: Yes
USB 2.0: Yes
HDMI: Yes
Number of USB Ports: 4
Number of HDMI Ports: 2
Environmental Conditions
Maximum Operating Temperature: 40°C
Physical Characteristics
Form Factor: Desktop
Height: 22.9 mm
Width: 91.4 mm
Depth: 96.5 mm
Weight (Approximate): 266.5 g
Miscellaneous
Compatibility:

• Windows 7
• Windows 8
• Windows 8.1
• Windows 10
• Windows 11
• macOS Sierra
• macOS High Sierra
• macOS Mojave
• macOS Catalina
• macOS BigSr
• macOS Monterey
• macOS 10.12
• macOS 10.15
• macOS 11
• macOS 12
• Chrome OS
