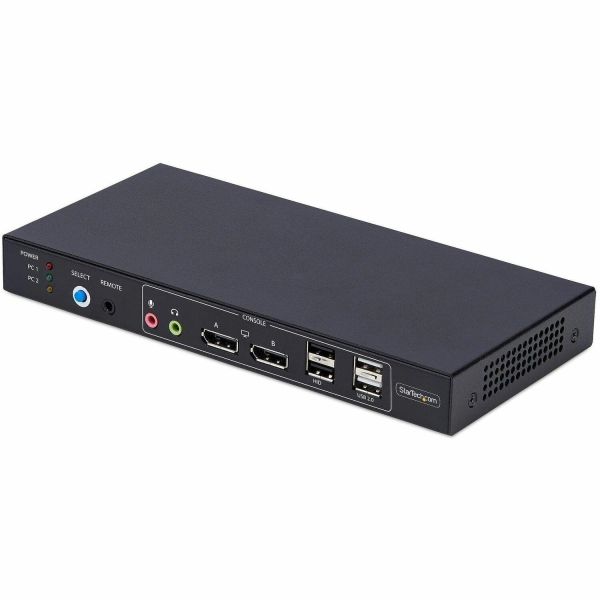

StarTech.com KVM Switchbox

Marketing Information

The Video Matrix KVM Switch allows you to view one display from each connected computer and switch the keyboard, mouse, and audio device between the selected displays using hotkeys. You can also switch all connected peripherals and both monitors like a standard KVM.

Universal Compatibility

The TAA-Compliant KVM Switch provides BIOS/UEFI control and works with any operating system, including Windows, macOS, and Linux. No software is required, and it is compatible with all hardware platforms such as Intel, AMD, and Apple Silicon.

Customizable Switching

Switching KVM ports is easy with the front-facing push button, hotkeys, or the included remote selector cable. An audible buzzer provi...des confirmation, and LEDs offer quick visual port selection status.

Reliable Performance

The durable design features a steel housing that helps prevent Electro-Magnetic Interference (EMI), enhancing the stability and reliability of the KVM. Its sturdy construction makes it ideal for installation in a variety of environments, and it offers 8kV Air/6kV Contact ESD protection.

USB Audio

Eliminate the need to connect 3.5mm cables from the computers to the KVM by using this KVM switch's built-in USB audio device, which provides 3.5mm audio jacks for both microphone and speakers. This setup simplifies your workspace by integrating audio management directly into the KVM switch.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• USB Event Monitoring Utility: Track and log connected USB devices.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: P2ADD121D-KVM-SWITCH
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: KVM Switchbox
Packaged Quantity: 1
Product Type: KVM Switchbox
Technical Information
Connectivity Technology: Wired
Number of Computers Supported: 2
Features: LED Indicator
Video
Graphic Mode: 4K
Maximum Video Resolution: 3840 x 2160
Interfaces/Ports
USB: Yes
USB Standard: USB 2.0
USB 2.0: Yes
DisplayPort: Yes
Number of USB Ports: 6
Number of DisplayPorts: 6
Environmental Conditions
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: 40°C
Power Description
Input Current: 1 A
Input Voltage Range: 100 - 240 AC
Power Plug Type: Type M
Physical Characteristics
Height: 25.4 mm
Width: 104.1 mm
Length: 220.98 mm
Weight (Approximate): 626.5 g
Miscellaneous
Package Contents:

• KVM Switch
• 1x Remote Selector Cable
• 1x Universal Power Adapter (NA/EU/UK/ANZ)
• 1x Quick-Start Guide

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin: Taiwan
TAA Compliant: Yes
Warranty
Limited Warranty: 2 Year
