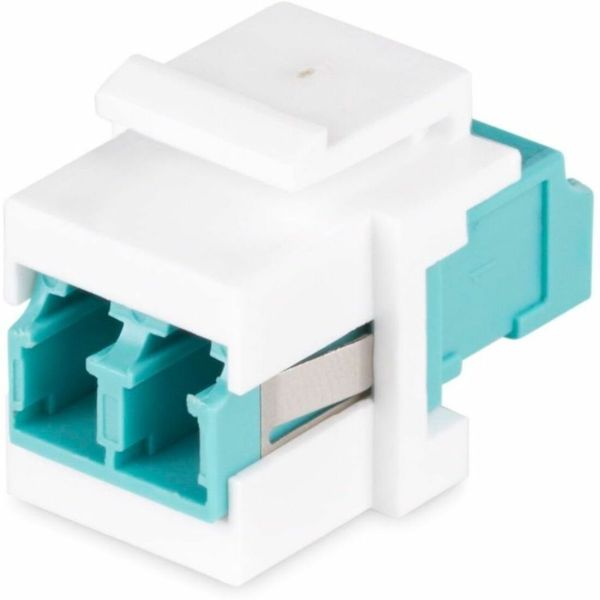

StarTech.com Fiber Optic Duplex Network Adapter

Marketing Information

Connect two LC Duplex fiber cables featuring UPC polished ends to extend a network connection, using this LC to LC Keystone Coupler. The female to female fiber coupler maintains optimal signal integrity while achieving low insertion loss that exceeds industry standards.

Compatible with Single Mode and Multimode Fiber Cables

The LC Fiber Coupler supports Single Mode and Multimode LC/LC fiber cables. It is compatible with OS1/OS2 (9/125µm) and OM1/OM2/OM3/OM4/OM5 (62.5/125µm and 50/125µm) fiber core/cladding. The coupler fits securely into the keystone jack which can be installed in a keystone patch panel or wall plate without requiring additional tools.

Durable Construction

The LC/LC K...eystone Coupler features a durable ABS housing and ceramic-lined inner sleeves for precise fiber alignment, minimizing signal loss for long-lasting reliability and performance.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: DMFKSLCLCCOUPLER
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Fiber Optic Duplex Network Adapter
Packaged Quantity: 1
Product Type: Network Adapter
Technical Information
Adapter Type: Fibre Optic
Connector Type on First End: LC/UPC Network - Female
Connector Gender on First End: Female
Connector on First End Details: 2 X LC/UPC Network - Female
Connector Type on Second End: LC/UPC Network - Female
Connector Gender on Second End: Female
Connector on Second End Details: 2 X LC/UPC Network - Female
Features:

• Passive
• Wear Resistant
• Plug and Play

Physical Characteristics
Color Family: White
Product Color: White
Product Material:

• ABS
• Metal

Sleeve Material: Ceramic
Material Details:

• ABS- Housing
• Ceramic - Lined Inner Sleeve
• Metal - Tabs

Height: 22.9 mm
Width: 17.8 mm
Length: 17.8 mm
Warranty
Limited Warranty: Lifetime
