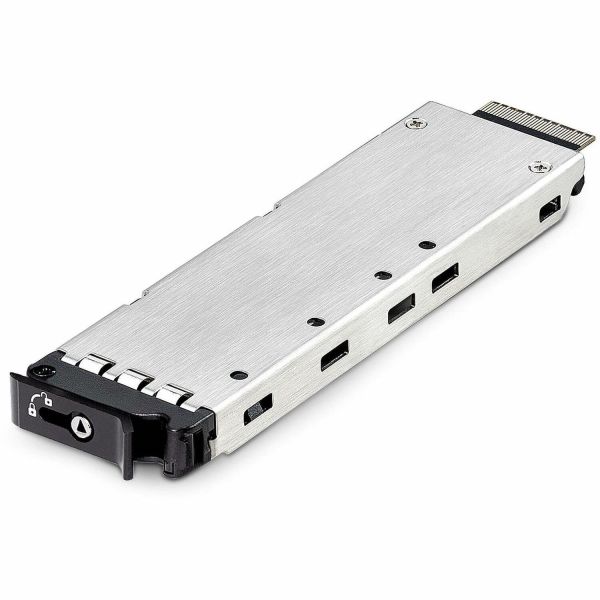

StarTech.com M.2 NVMe SSD Drive Tray

Marketing Information

A spare drive tray for M2-REMOVABLE-PCIE-N1 or 2M2-REMOVABLE-PCIE, to add or swap a compatible drive. The drive tray accommodates M-Key M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 sizes.

Toolless Installation

Install an M.2 drive into the drive tray without the need for tools. The drive tray features a power/activity LED indicator to monitor drive status. A latching mechanism with optional lock (2 keys included) deters the theft of mission-critical data storage devices.

Optimal Performance

The tray features thermal pads which aid heat dissipation, ensuring optimal and reliable performance while reducing potential thermal throttling. Anti-vibration springs on the drive tray reduce impact during in...stallation and enhance the overall stability and longevity of the drive.

Hot-Swappable

When used with products from the PCIe Expansion Product Series, it provides flexibility and convenience for managing multiple M.2 drives. NVMe PCIe hot swap support is dependent on the motherboard. Verify hot swap support with the manufacturer of the motherboard and for instructions regarding how to enable this feature.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: TRM2REMOVABLEPCIE
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: M.2 NVMe SSD Drive Tray
Packaged Quantity: 1
Product Type: Drive Enclosure
Technical Information
Number of Solid State Drive Supported: 1
Number of Solid State Drive Installed: 0
Maximum Data Transfer Rate: 64 Gbit/s
I/O Expansions
Number of Total Expansion Bays: 1
Hot Swappable Bays: Yes
Network & Communication
Wireless LAN: No
Interfaces/Ports
Drive Interface: PCI Express NVMe 4.0
Software
Operating System Supported:

• Windows
• Linux

Physical Characteristics
Color Family: Dual Colour
Product Color:

• Black
• Silver

Product Material: Aluminium
Height: 12 mm
Width: 34 mm
Depth: 124 mm
Weight (Approximate): 36 g
