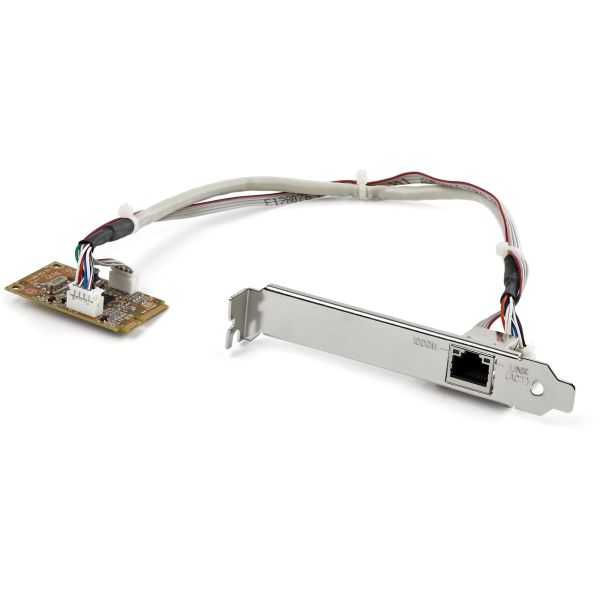

StarTech.com Mini PCI Express Gigabit Ethernet Network Adapter NIC Card

Marketing Information
The ST1000SMPEX Mini PCI Express Gigabit Network Adapter Card adds 1000Mbps network connectivity to a Mini PCI Express (PCI Express Mini Card, Mini PCIe) enabled computer system, such as Mini-ITX motherboards.
Supporting features such as NDIS5 checksum and large send offload for lower CPU utilization, Wake-onLAN (WOL) and Remote Wake-up power management, jumbo frames and VLAN tagging, this Mini PCI Express Gigabit Adapter is ready to handle a wide variety of scenarios.
Perfect for small form factor or embedded systems that originally lack Gigabit networking capability, or for adding a network connection without taking up a full-sized PCI Express slots, this high quality Mini PCIe Network Adapter includes a low profile/half-height ...bracket for additional installation options.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: ST1000SMPEX
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Mini PCI Express Gigabit Ethernet Network Adapter NIC Card
Packaged Quantity: 1 Each
Product Type: Gigabit Ethernet Card
Technical Information
Chipset Manufacturer: Realtek
Chipset Model: RTL8111E
Interfaces/Ports
Host Interface: Mini PCI Express
Total Number of Ports: 1
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Media & Performance
Media Type Supported: Twisted Pair
Network & Communication
Network Technology: 10/100/1000Base-T
Physical Characteristics
Card Height: Low-profile
Form Factor: Plug-in Card
Height: 33 mm
Width: 144.8 mm
Depth: 50.8 mm
Thickness: 4.1 mm
Weight (Approximate): 5.7 g
Miscellaneous
Package Contents:

• Mini PCI Express Gigabit Ethernet Network Adapter NIC Card
• 1 x RJ45 Daughter Board
• 1 x Low Profle Installation Bracket
• 1 x Driver CD
• 1 x Instruction Manual

Additional Information:

• Full length mini PCI Express (PCI Express Mini Card, Mini PCIe) form factor fits in many Mini-ITX or embedded systems
• Built-in NDIS5 Checksum and Large Send Offload support and Jumbo Frames minimize system resource usage
• Backed by a StarTech.com 2-year warranty and free lifetime technical support

System Requirements:

• Windows® 2000, XP, Vista, 7, 8, 8.1, 10
• Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
• Mac OS® 10.4.x and 10.5.x
• Linux 2.4.x to 4.11.x LTS Versions Only

Warranty
Additional Warranty Information: Free lifetime technical support.
