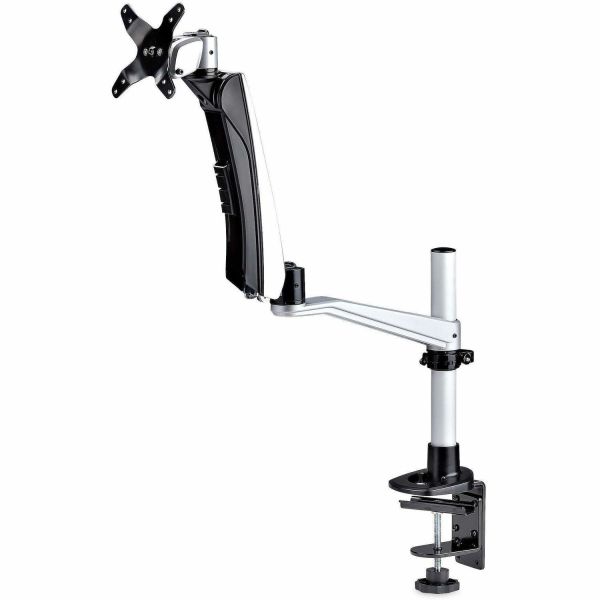

StarTech.com Mounting Arm

Marketing Information

This monitor desk mount is designed to support up to 27-inch 16:9 or 30-inch 21:9 display, creating an ergonomic area for productivity. The mechanical spring-assisted arm enables multiple adjustment to suit different ergonomic needs.

Height Adjustment with One Smooth Motion

The spring arm enables toolless height adjustment of up to 10.6in (270mm) with effortless one-touch motion. Adjust the height of the arm along the 10.2in (261mm) pole. The arm can extend up to 22.2in (590mm) from the pole.

Toolless Assembly

The quick toolless slide and click design makes assembly quick and simple. The pre-assembled desk clamp and pole can be easily secured by hand to the desk, saving total installation time....p>

Range of Motion

The articulating arm enables toolless adjustments of +/-180° horizontal swivel, 105° tilt, 240° pan, and 360° screen rotation on the VESA plate for portrait or landscape orientations. This flexibility enables users to customize the screen placement for maximum productivity and comfort.

Durable Construction

With its steel and aluminum construction, the premium monitor arm supports a weight capacity of 19.8 lb. (9 kg). Die-cast aluminum arms with mechanical springs that passed 10,000 cycle test and are backed for 10 years for long-lasting performance.

Cable Management

To maintain an organized workspace, the adjustable arm features a cable management channel along the underside to keep cables out of sight, reducing clutter and contributing to a tidy setup. A cable clip on the pole also helps maintain an organized workspace.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: 1MP1ACG-MONITOR-ARM
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Mounting Arm
Product Type: Mounting Arm
Product Information
Device Supported:

• Monitor
• Display Screen
• Computer

Number of Displays Supported: 1
Maximum Load Capacity: 9 kg
Minimum Screen Size Supported: 43.2 cm
Maximum Screen Size Supported: 76.2 cm (30")
Features:

• Adjustable
• Tool-less Adjustment
• Grommet
• Spring Arm
• Ergonomic
• Extendable Arm
• Articulating Arm
• Swivel
• Tilt
• Pan
• Rotate
• Flexible
• Cable Management
• Cable Clip
• Pivot

Orientation: Landscape/Portrait
Height Adjustable: Yes
Minimum Tilt Angle: 15°
Maximum Tilt Angle: 105°
Minimum Swivel Angle: 120°
Maximum Swivel Angle: 180°
Minimum Rotate Angle: 90°
Maximum Rotate Angle: 360°
Maximum Pan Angle: 240°
Physical Characteristics
Color Family: Black
Product Color: Black
VESA Mount Compatible: Yes
Mounting Pattern:

• 75 x 75
• 100 x 100

Product Material:

• Steel
• Aluminium
• Die-cast Aluminum

Form Factor: Desk
Height: 36.1 cm
Width: 67.3 cm
Length: 10.4 cm
Weight (Approximate): 2.99 kg
Miscellaneous
Package Contents:

• 1 x Spring Arm
• 1 x Swivel Arm
• 1 x Pole Mount Assembly
• 1 x VESA Monitor Mount
• 1 x Cable Management Clip
• 1 x Hex Key
• 4 x Monitor Thumbscrews
• 1 x Base Cushion
• 1 x User Manual

Application/Usage: Workspace
TAA Compliant: Yes
Warranty
Limited Warranty: 10 Year
