StarTech.com SFP+ Module

Marketing Information

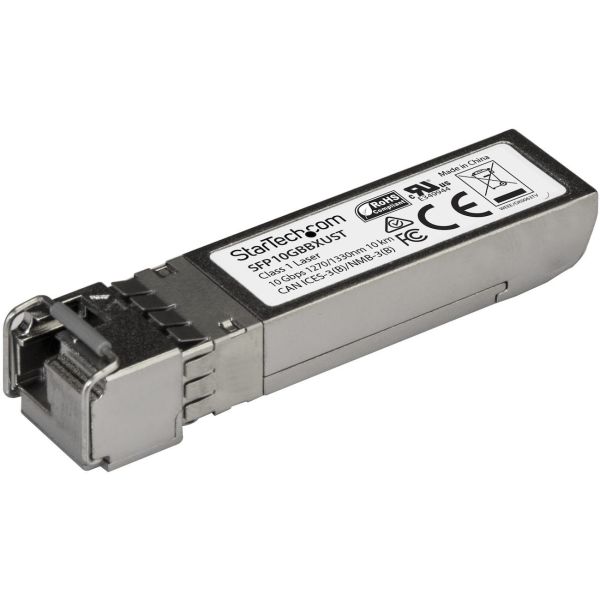

The SFP10GBBXUST is an MSA compliant upstream fiber SFP transceiver which pairs with StarTech.com's SFP10GBBXDST. They are designed, programmed and tested to work with 10GBASE-BX compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 10 GbE connectivity over fiber cabling.

Technical Specifications:

• Wavelength: 1270nmTx/1330nmRx
• Maximum Data Transfer Rate: 10 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption: Less than 1 Watt
• DDM: Yes

This SFP+ fiber module is hot-swappable, making upgrades a...nd replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: SFP10GBBXUST
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: SFP+ Module
Packaged Quantity: 1 Each
Product Type: SFP+
Technical Information
Application/Usage:

• Optical Network
• Data Networking

Interfaces/Ports
Total Number of Ports: 1
Connector Type: LC
Interfaces/Ports Details: 1 x LC Duplex 10GBase-BX Network
Media & Performance
Media Type Supported: Optical Fiber
Fiber Mode Supported: Single-mode
Ethernet Technology: 10 Gigabit Ethernet
Network Technology: 10GBase-BX
Physical Characteristics
Form Factor: Hot-swappable
Height: 12.7 mm
Width: 12.7 mm
Depth: 58.4 mm
Weight (Approximate): 22.7 g
Miscellaneous
Compatibility: MSA Compliant
