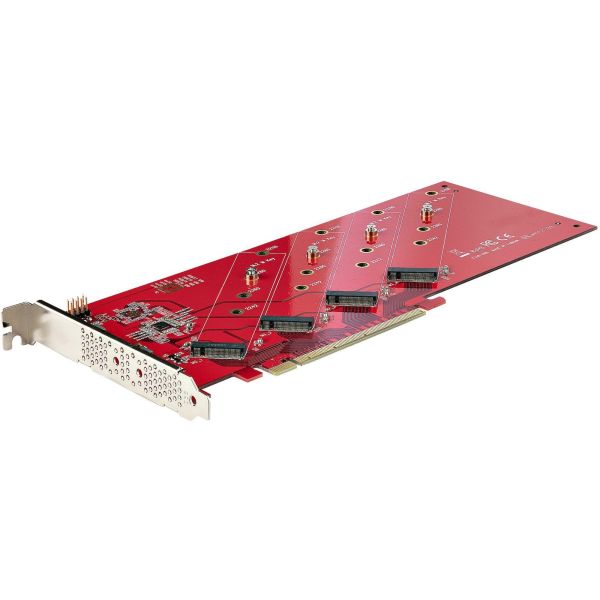

StarTech.com PCI Express x16 to Quad M.2 PCIe SSD Adapter with Bifurcation

Marketing Information

This Quad M.2 PCIe SSD Adapter adds up to four high performance PCIe M.2 SSDs (NVMe and AHCI) using the PCIe x16 slot of a desktop, workstation, or server.

Boost System Performance

Take full advantage of the fast performance and compact size of PCIe M.2 internal solid-state drives, with read and write speeds up to 7.8GBps per drive.

Access Four M.2 PCIe SSDs Simultaneously

No on-board chip leads to wide system compatibility. This card requires PCIe bifurcation, meaning it easily integrates into any system with an available x16 PCIe slot that supports PCIe bifurcation.

Utilize software RAID, such as Storage Spaces (Microsoft) or mdraid/mdadm (Linux), to build a RAID array, adding redundancy o...r enhancing system performance.

Wide Compatibility

The PCIe M.2 NGFF (M Key or B+M Key) adapter supports PCIe NVMe and PCIe AHCI M.2 SSDs including 2242, 2260, 2280 and 22110mm drives. The PCIe M2. Adapter Card does not require any software or drivers, meaning it works with most operating systems - if the computer/motherboard supports bifurcation.

Vented Brackets

The pre-installed full-profile vented bracket increases air flow to improve heat dissipation, which aids in maintaining optimal and reliable operating temperatures.

The QUAD-M2-PCIE-CARD-B is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: QUADM2PCIECARDB
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: PCI Express x16 to Quad M.2 PCIe SSD Adapter with Bifurcation
Packaged Quantity: 1
Product Type: M.2 to PCI Express Adapter
Physical Characteristics
Product Color: Red
Miscellaneous
Additional Information:

Hardware

• Interface: M.2 PCIe

• Bus Type: PCI Express
• Number of Drives: 4
• Drive Size: 22 mm - M.2 NVMe
• Compatible Drive Types: M.2 (PCIe, NVMe, M-Key, NGFF)
• Drive Installation: Fixed
• SupportedDriveHeight(s):
• 2242
  2260
  2280
  22110

Performance

• Type and Rate: PCI Express 4.0 (16 Gbps)
• Hardware Raid Supported: No
• Hot Swap Capability: No
• MTBF: 4,353,192 hrs

Connector(s)

• DriveConnectors: 4 - M.2 (NVMe, M-Key, PCIe x4)
• HostConnectors: 1 - PCI Express x16

Software

OS Compatibility: No Drivers or Software Required

Compatibility:

Compatible Drive Types: M.2 (PCIe, NVMe, M-Key, NGFF)

Certifications & Standards:

• CE
• FCC

Country of Origin: Taiwan
