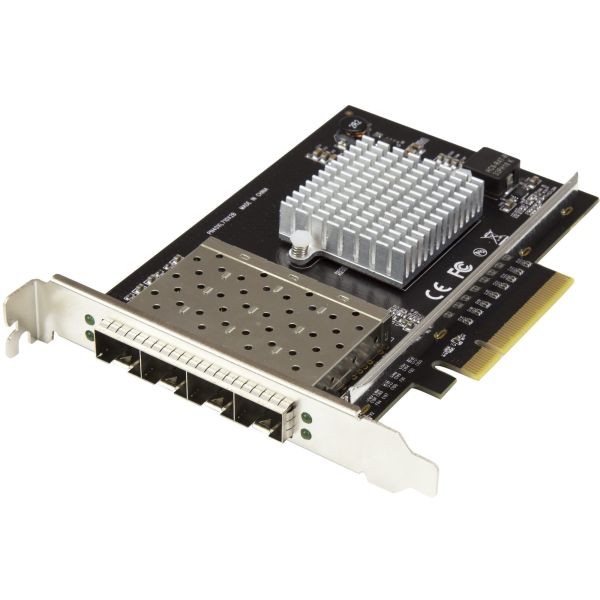

StarTech.com Quad-Port SFP+ Server Network Card - PCI Express - Intel XL710 Chip

Marketing Information

This SFP+ server network card delivers reliable, high-performance network connectivity, by adding four open SFP+ slots to your server or high-powered workstation. It provides an easy and cost-effective way to upgrade to a 10 Gigabit fiber network using SFP+ modules of your choice and gives you the flexibility to use either multimode or single-mode fiber.

Add redundant connections in zero-downtime environments

With multiple available ports, you can avoid network downtime by adding fault-tolerant connections using two or more modules to provide high-bandwidth network links to your mission-critical servers or workstations.

Increase your network speed

This PCIe network card lets you take advantage of t...he increased speed and stability of a 10 Gigabit network, with data transfers of up to 10Gbps.

Add scalable network connections to your server or workstation

The network interface card is compatible with most 10GbE SFP+ transceivers. This gives you flexible and scalable configuration options, for connecting your computer directly to a fiber network at greater distances.

The card features four open SFP+ slots with support for interchangeable 10GBase SFP+ modules. This gives you the option to use the fiber transceiver modules that best suit your network needs based on distance and connector type. StarTech.com offers a wide variety of SFP+ transceiver modules to suit your network requirements. In addition, StarTech.com SFP+ cables provide a dependable solution for linking telecom and data communications equipment, such as routers and switches.

Enhance your network capabilities

The SFP+ server network card features the Intel® XL710 chipset, delivering the power, performance and enhanced capabilities you need for reliable connections to your server or computer. The Intel chip offers many advanced features including Intel® Virtualization Technology for Connectivity, PXE network boot support and up to 9K jumbo frame support.

The PEX10GSFP4I is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: PEX10GSFP4I
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Quad-Port SFP+ Server Network Card - PCI Express - Intel XL710 Chip
Packaged Quantity: 1 Each
Product Type: 10Gigabit Ethernet Card
Technical Information
Chipset Manufacturer: Intel
Chipset Model: XL710
Interfaces/Ports
Host Interface: PCI Express x8
Total Number of Ports: 4
I/O Expansions
Expansion Slot Type: SFP+
Media & Performance
Media Type Supported: Optical Fiber
Maximum Data Transfer Rate: 20 Gbit/s
Network & Communication
Network Technology:

• 10GBase-LR
• 10GBase-SR

Physical Characteristics
Color Family: Black
Product Color: Black
Form Factor: Plug-in Card
Height: 99.1 mm
Width: 15.2 mm
Depth: 139.7 mm
Weight (Approximate): 121.9 g
Miscellaneous
Device Supported: Server
System Requirements:

• Windows® 7, 8, 8.1, 10
• Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019
• (Windows Drivers are supported in 64-bit only)
• Linux 2.6.24 to 4.11.x (64-bit Only)< LTS Versions only
