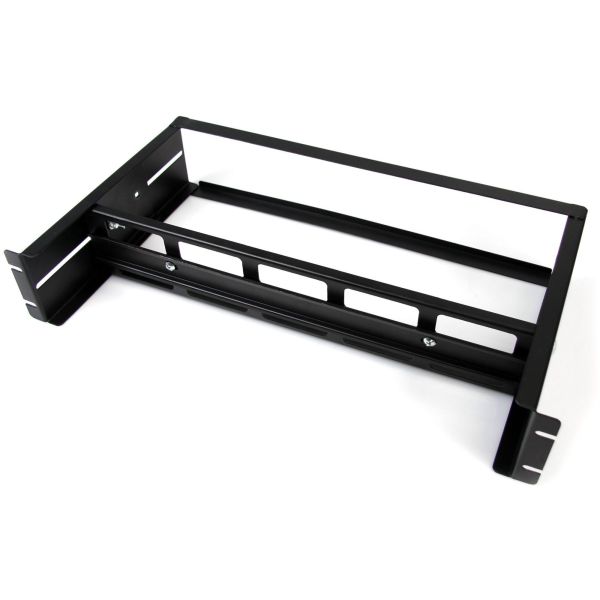

StarTech.com Rackmount DIN Rail Kit with Top Hat/Mini/G Rails

Marketing Information
The ADJDINKIT Adjustable Rack Mount DIN Rail Kit with Top Hat/Mini/G Rails makes mounting your DIN-rail equipment in a 19-inch server rack/cabinet or wall plate simple, without wasting space due to special bracket requirements for each piece of equipment. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

This 19-inch DIN Rail Mounting Kit includes the three most commonly used DIN rail systems: Top-Hat, Miniature Top-Hat, and G-Type.

Backed by a StarTech.com Lifetime Warranty.

More from the Manufacturer

...m/mini-site/en_uk/1016801423.html','_blank','height=800,width=780,resizable=yes,scrollbars=yes,toolbar=no,menubar=no,location=no,directories=no,status=no');return false;">More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: ADJDINKIT
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Rackmount DIN Rail Kit with Top Hat/Mini/G Rails
Packaged Quantity: 1 Each
Product Type: Rack Conversion Kit
Product Information
Device Supported: Server
Features: Adjustable Depth
Physical Characteristics
Color Family: Black
Product Color: Black
Product Material:

• Steel
• Solid Steel

Height: 8.9 cm
Width: 48.3 cm
Depth: 35.8 cm
Weight (Approximate): 2.13 kg
Miscellaneous
Package Contents:

1 - Din Rail mounting brackets

1 - G-Type Top-Hat Din Rail

1 - Miniature Top-Hat Din Rail

1 - Top-Hat Din Rail

4 - Carriage Bolts

4 - M5 Cage Nuts

4 - M5 Screws

4 - DIN rail mounting Screws

4 - Wing Nuts
Application/Usage:

• Cabinet
• Wall
• Rack

Additional Information:

Maximum Mounting Depth: 222.25 mm

Compatibility:

Standard 19" Rack

Certifications & Standards:

• EIA-310D
• UL
• CE

TAA Compliant: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year
