StarTech.com HDMI Audio/Video Adapter

Marketing Information

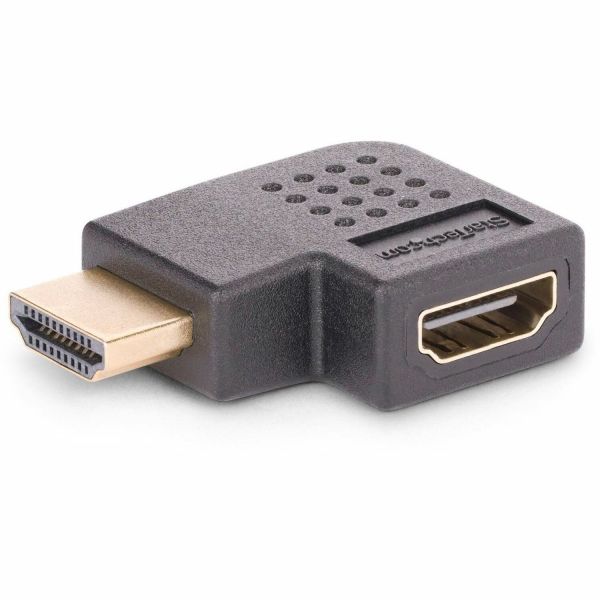

This compact Right-Angled HDMI Adapter acts as a port saver, mitigating strain on HDMI ports and connectors. Ideal for installations with limited depth, it enables access to concealed or rear-facing HDMI ports, and reduces wear and tear resulting from frequent connections.

Full HDMI Capability

This Right Angle HDMI adapter supports all HDMI 2.0 specifications:

• Resolutions up to 4K 60Hz
• High speeds with a bandwidth of up to 18Gbps
• High Dynamic Range (HDR) for higher contrast ratio and vibrant colors
• Crystal clear sound with up to 32 channels of digital audio
• Supports 21:9 cinema aspect ratio and 3D video
• Backward compatible with previous versions of HDMI
<...li> Supports Consumer Electronics Control (CEC)

Enjoy Optimal Picture Quality

Fully compatible with HDMI 2.0 equipment, this HDMI 2.0 Port Saver maintains optimal picture quality at resolutions up to 4K 60Hz and bandwidths up to 18Gbps. Backward compatibility ensures seamless integration with existing HDMI devices.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: HDMI2HDMIMFRA
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: HDMI Audio/Video Adapter
Packaged Quantity: 1
Product Type: A/V Adapter
Technical Information
Adapter Type: HDMI
Connector Type on First End: HDMI 2.0 Digital Audio/Video
Connector Gender on First End: Male
Connector on First End Details: 1 x HDMI 2.0 Digital Audio/Video - Male
Connector Type on Second End: HDMI 2.0 Digital Audio/Video
Connector Gender on Second End: Female
Connector on Second End Details: 1 x HDMI 2.0 Digital Audio/Video - Female
Connector Plating: Gold
Contact Plating: Gold
Maximum Resolution Supported: 3840 x 2160
Features:

• 90° Angled Connector
• Right-angled Connector
• Wear Resistant
• Tear Resistant
• HDR Support
• Consumer Electronics Control (CEC)
• HDR10
• Audio Return Channel (ARC)
• HDCP 2.2
• Passive

Number of Conductors: 19
Physical Characteristics
Color Family: Black
Product Color: Black
Product Material: Polyvinyl Chloride (PVC)
Material Details:

Textured PVC - Outer Shell

Height: 12.7 mm
Width: 27.9 mm
Length: 33 mm
