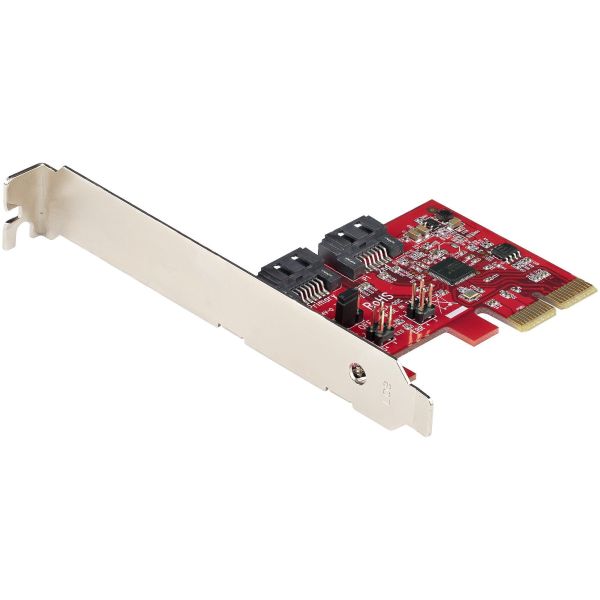

StarTech.com SATA Controller Card

Marketing Information

This 2-port SATA III (6Gbps) controller with RAID enables you to add two SATA 6Gbps Hard Drives (HDDs) or Solid State Drives (SSDs) to your computer system or server via an available PCIe x2 card slot, and build the disks into a hardware RAID array. The card supports SATA III and PCI-Express 2.0 Specifications, and can also be used to add optical disk drives (ODD) like CD/DVD/Blu-ray to your computer.

Versatile Hardware RAID Configurations

This RAID controller supports different hardware RAID configurations to meet your specific application:

• RAID 0 (striped) - Splits your data evenly across both drives to increase read/write performance, while also increasing the size of your volume storage capacity... to the combined total of both drives.

• RAID 1 (mirrored) - Exactly copies your data on both drives to provide data redundancy, so your data will be safely backed-up should one of the drives fail.

• SPAN (big) - Combines both drives into a single array to increase the size of your volume storage capacity to the combined total of both drives.

• JBOD (Just a bunch of disks) - Exposes both drives as individual devices to be treated independently.

ASM1062R to Deliver 2-Port SATA 6Gbps Performance

Featuring the ASM1062R controller, this SATA card enables the connection of two high-performance SATA 6Gbps drives with a combined total throughput of up to 8Gbps. The SATA drives are connected via two individual SATA ports located on the card (SATA cables sold separately).

Wide Compatibility

The controller card is widely supported across all popular operating system platforms including Windows (7, 8, 10, 11), macOS (10.10 and above) and Linux (2.6.32 and above). Plus, with support for PCIe 2.0 and SATA III Specifications this card ensures backward compatibility with previous generations (SATA I/II, PCIe 1) at lower performance.

For managing and configuring RAID functionality, the card supports OS booting on Windows & Linux for BIOS level RAID setup & configuration, and includes an application on Windows for OS level RAID setup, configuration & monitoring. On macOS only software RAID is supported using RAID Assistant.

Hassle-Free Installation

The SATA controller card features plug-and-play installation and can be installed in a full-profile or low-profile computer systems with the full-profile bracket preinstalled, and an interchangeable low-profile (half-height) bracket included.

2P6GR-PCIE-SATA-CARD is backed by a StarTech.com 2-year warranty and free lifetime 24/5 North American based, multi-lingual support.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: 2P6GR-PCIE-SATA-CARD
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: SATA Controller Card
Packaged Quantity: 1
Product Type: SATA Controller
Technical Information
Host Interface: PCI Express x2
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels:

• 0
• 1
• JBOD

Device Supported: Server
Operating System Supported:

• Windows 7
• Windows 8
• Windows 8.1
• Windows 10
• Windows 11
• Windows Server 2012 R2
• Windows Server 2016
• Windows Server 2019
• Windows Server 2022
• Mac OS X 10.10 Yosemite
• Mac OS X 10.11 El Capitan
• Mac OS X 10.12 Sierra
• Mac OS X 10.13 High Sierra
• Mac OS X 10.14 Mojave
• Mac OS X 10.15 Catalina
• Mac OS X 11.0 Big Sur
• Mac OS X 12.0 Monterey
• Mac OS X 13.0 Ventura
• Linux 2.6.32

Interfaces/Ports
Total Number of SATA Ports: 2
Number of SATA Ports (Internal): 2
Physical Characteristics
Height: 121 mm
Width: 69 mm
Length: 22 mm
Form Factor: Plug-in Card
Weight (Approximate): 35 g
Miscellaneous
Platform Supported: PC
