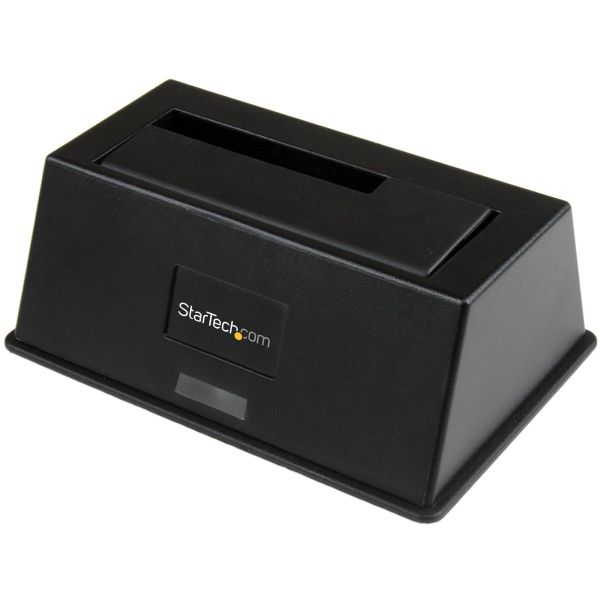

StarTech.com USB 3.0 SATA III Hard Drive Docking Station SSD / HDD with UASP

Marketing Information

The SDOCKU33BV UASP-enabled USB 3.0 docking station makes it easy for you to connect and swap 2.5in or 3.5in SATA III hard drives (HDD) and solid state drives (SSD) through an available USB port. The dock performs up to 70% faster than conventional USB 3.0 when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives.

With support for large capacity SATA I/II/III drives (tested up to 4TB), and 2.5in or 3.5in drives this HDD/SSD docking station is compatible with virtually any SATA drive, and greatly increases the storage/backup capabilities of your computer.

Extend the value of this hard drive docking station further with the addition of our SATA to IDE Hard Drive Adapter (SAT2IDE...ADP), allowing easy insertion of any 2.5 or 3.5in IDE hard drive into a SATA hard drive dock.

To ensure compatibility with your computer system, the SDOCKU33BV supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.

The SDOCKU33BV is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: SDOCKU33BV
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: USB 3.0 SATA III Hard Drive Docking Station SSD / HDD with UASP
Packaged Quantity: 1
Product Type: Drive Dock
Technical Information
Number of Hard Drives Supported: 1
Number of Hard Drives Installed: No
Number of Solid State Drive Supported: 1
Number of Solid State Drive Installed: No
I/O Expansions
Number of Total Expansion Bays: 1
Number of 2.5"/3.5" Bays: 1
Network & Communication
Wireless LAN: No
UASP Support: Yes
Interfaces/Ports
Drive Interface: SATA/600
Host Interface: USB 3.0 Type B
Power Description
Input Voltage:

• 110 V AC
• 220 V AC

Power Source: AC Adapter
Physical Characteristics
Color Family: Black
Product Color: Black
Cooling Fan: No
Form Factor: External
Height: 50.8 mm
Width: 91.4 mm
Depth: 139.7 mm
Weight (Approximate): 317.5 g
Miscellaneous
Package Contents:

• USB 3.0 to 2.5/3.5" Hard Drive Docking Station for SATA III SSD/HDD with UASP
• 1 x USB 3.0 Cable
• 1 x Power Adapter
• 1 x Instruction Manual

Platform Supported:

• PC
• Mac

Certifications & Standards:

• FCC
• CE

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year
