StarTech.com 4 Port Professional VGA USB KVM Switch with Hub

Marketing Information

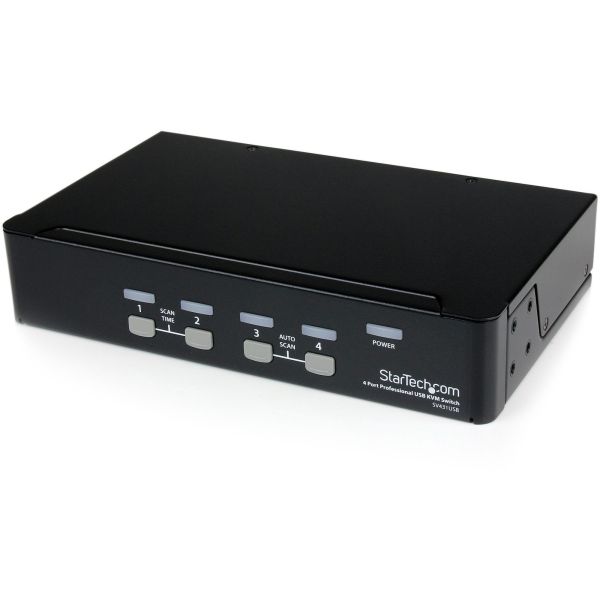

The SV431USB 4 Port rack mountable VGA USB KVM Switch with Hub offers simple control of up to four computers from a single monitor/display and USB peripheral set (keyboard, mouse).

The USB KVM switch features an integrated 4 port USB hub, allowing you to share connected USB peripherals between the four controlled PC/Mac computers as though the devices were connected directly.

Offering convenient placement and installation options, the KVM switch features a 1U rack-mountable form factor and rear port connection to master and slave computers, allowing you to make the necessary device connections without disrupting your workspace.

A cross-platform solution, the KVM switch supports high resolution applications at up to 192...0x1440 and provides a smooth operating experience when controlling mixed (Windows/Mac OS/Linux) environments.

This product is TAA compliant and backed by a Startech.com 3 year warranty with free lifetime technical support.

Rackmount your KVM switch

If you'd like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket(sold separately) that turns this KVM into a rackmountable KVM.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: SV431USB
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 4 Port Professional VGA USB KVM Switch with Hub
Packaged Quantity: 1
Product Type: KVM Switchbox
Technical Information
Number of Computers Supported: 4
Number of Local Users Supported: 1
Minimum Scan Interval: 3 Second
Video
Maximum Video Resolution: 1920 x 1440
Interfaces/Ports
USB: Yes
VGA: Yes
Number of USB Ports: 8
Number of VGA Ports: 5
Physical Characteristics
Color Family: Black
Product Color: Black
Form Factor:

• Rack-mountable
• Desktop

Rack Height: 1U
Height: 43.2 mm
Width: 129.5 mm
Depth: 221 mm
Weight (Approximate): 988 g
Miscellaneous
Compatibility:

• Plug and Play
• Compatible with all notebook computers

Additional Information:

• Integrated USB 2.0 hub allows the user to share USB peripherals eliminating the expense of duplicate devices.
• Rugged, solid steel rack-mountable case offers durability even in harsh environments.
• Absolutely no software or drivers required providing a completely OS independent KVM solution.

Platform Supported:

• PC
• Mac

TAA Compliant: Yes
Warranty
Limited Warranty: 2 Year
