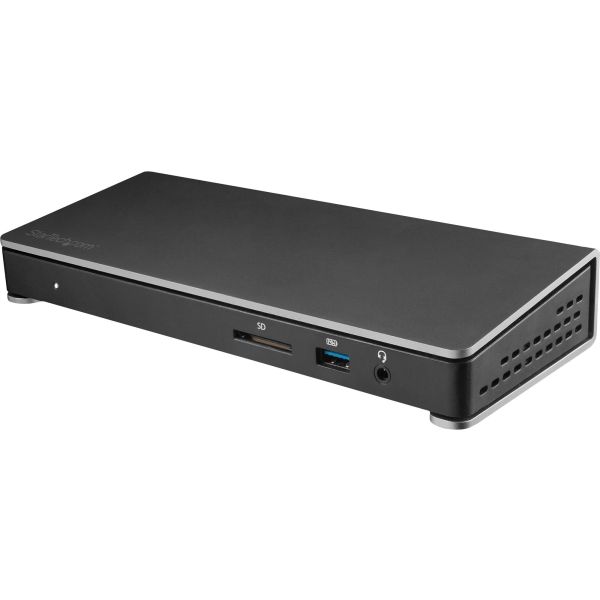

StarTech.com Thunderbolt 3 Dock with SD Card Reader - Dual-4K - 85W USB Power Delivery

Marketing Information

Easily transform your Thunderbolt 3 equipped MacBook Pro or Windows laptop into a dual-4K workstation with up to 40Gbps of throughput. The high-quality TB3 dock features six USB 3.0 ports, 85W Power Delivery to charge your laptop, and an SD card reader.

Create a Dual-4K 60Hz Workstation

This dual-monitor docking station supports 40Gbps speeds and 4K (4096 x 2160) resolution at 60Hz on two monitors, enabling resource-demanding applications on independent displays without draining system resources. The TB3 dock can support 5K (5120 x 2880) resolutions @ 60Hz on a single display.

Connect your laptop to:

• 1 x 4K monitor via the DP Port
• 1 x 4K monitor via the TB3 USB-C Port (1.8 m cable includ...ed)

OR

• 1 x 5K monitor via the DP and TB3 USB-C ports

Easy Installation & Deployment

Simply connect the TB3 dock to your laptop with the included TB3 cable and start working immediately. No time-consuming driver installations are required. Set up a second monitor using the included USB-C to DisplayPort cable adapter, eliminating the need for extra adapters.

Plenty of Ports Including SD Card Reader

The TB3 docking station offers six USB 3.0 ports, including a Fast-Charge port and USB-C port, an GbE port and audio/microphone port. The built-in SD card reader adds storage not usually available on most docking stations.

85W Power Delivery

Using a single cable, the universal laptop docking station provides up to 85W of Power Delivery to power and charge your laptop, and power your peripherals with its 180W power adapter.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility: To setup and save custom windows layouts.

• Mac Address Pass-Through Utility: To improve network security.

• USB Event Monitoring Utility: To track and log connected USB devices

• Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools

TB3DOCK2DPPU is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: TB3DOCK2DPPU
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Thunderbolt 3 Dock with SD Card Reader - Dual-4K - 85W USB Power Delivery
Packaged Quantity: 1
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported: Notebook
Interfaces/Ports
Host Interface: USB Type C
Total Number of USB Ports: 6
Number of USB 3.0 Ports: 6
Network (RJ-45): Yes
DisplayPort: Yes
Microphone: Yes
Thunderbolt: Yes
Software
Operating System Supported: Mac OS X 13.0 Ventura
Power Description
Maximum Power Supply Wattage: 85 W
Physical Characteristics
Height: 34 mm
Width: 87 mm
Miscellaneous
Package Contents:

• Thunderbolt 3 Dock with SD Card Reader - Dual-4K - 85W USB Power Delivery
• 1 x Thunderbolt 3 Cable
• 1 x USB-C to DisplayPort Cable
• 1 x Universal Power Adapter
• 2 x Power Cords (UK, EU)
• 1 x Instruction Manual

Compatibility:

• Apple MacBook Pro (15 & 16)
• Apple MacBook Air
• HP Notebooks
• Lenovo ThinkPad Notebooks
• Dell XPS Notebooks

Brand Compatibility:

• Apple
• Dell
• HP
• Lenovo

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 3 Year
