StarTech.com Docking Station

Marketing Information

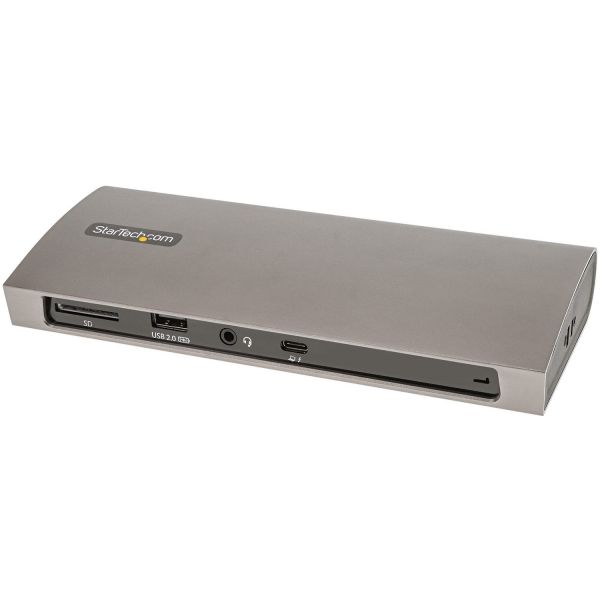

This Thunderbolt 4 Certified docking station lets you use a single Thunderbolt 4, Thunderbolt 3 or USB4 port to add high-performance connectivity and charge your Thunderbolt 4 or USB4 Windows laptop, Thunderbolt 4 M1 Max/M1 Pro MacBook, or your Thunderbolt 3 M1 or Intel MacBook (macOS 11 Big Sur or higher).

For easy deployment the dock includes a 2.6 ft. (0.8 m) Thunderbolt 4 cable that connects to the front-facing host port, and features Kensington-style security slots.

High-Performance Port Connectivity

The docking station utilizes the high 40Gbps throughput available from your computer's Thunderbolt 4, Thunderbolt 3, or USB4 port to provide a wide range of port connectivity to suit a variety of applications, includi...ng daisy chaining up to five devices from the TB4/USB4 ports.

The dock features:

• 3x downstream Thunderbolt 4/USB4 ports to flexibility connect Thunderbolt 4, Thunderbolt 3, and USB peripheral devices and display(s), with the added benefit of 15W (3A) device charging per each port.

• 3x USB 3.2 Gen 2 (10Gbps) Type-A portsto connect USB peripheral devices.

• 1x USB 2.0 (480Mbps) Type-A port that supports BC 1.2 with 7.5W (1.5A) for charging tablets and smartphones, or connecting USB Human Interface Device(s) (HID), such as a USB transceiver, to minimize signal interference.

• 1x Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN).

• 1x Secure Digital (SD) 4.0/UHS-II card reader to externally access SD, SDHC and SDXC memory cards.

• 1x 3.5mm 4-position TRRS Audio Jack to connect a 3.5mm headset.

High-Resolution Display Connectivity

Up to two monitors can be attached to any of the downstream Thunderbolt 4 ports using USB-C monitors, Thunderbolt monitors or USB-C DP Alt Mode to video adapters (video adapter required, each sold separately).

On Thunderbolt 4 Windows laptops the dock can support dual monitors with resolutions up to 4K 60Hz, or a single monitor with resolutions up to 8K 30Hz, 6K 60Hz, 5K 60Hz, 4K 60Hz.

On Thunderbolt 4 M1 Max and M1 Pro MacBooks the dock can support dual monitors with resolutions up to 4K 60Hz, or a single monitor with resolutions up to 6K 60Hz, 5K 60Hz, 4K 60Hz.

On M1 Thunderbolt 3 MacBooks the dock can support a single monitor with resolutions up to 6K 60Hz, 5K 60Hz, 4K 60Hz.

On Intel Thunderbolt 3 MacBooks the dock can support dual monitors with resolutions up to 4K 60Hz, or a single monitor with resolutions up to 6K 60Hz, 5K 60Hz, 4K 60Hz.

On USB4 Windows laptops the dock can support a single monitor with resolutions up to 8K 30Hz, 6K 60Hz, 5K 60Hz, 4K 60Hz.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: TB4CDOCKUE
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Docking Station
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported:

• Tablet
• Notebook
• Mouse
• Headset
• Desktop PC
• Keyboard
• Monitor
• Smartphone
• Workstation

Memory Card Reader: Yes
Memory Card Supported:

• SD
• SDXC
• SDHC

Number of Displays Supported: 2
Screen Mode Supported:

• 5K
• 4K
• 8K

Supported Resolutions:

• 3840 x 2160
• 5120 x 2880
• 7680 x 4320

Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: Thunderbolt 4
Number of USB 2.0 Ports: 1
Number of USB 3.2 Gen 2 Type-A Ports: 3
Number of USB Type-A Ports: 4
USB Type-A: Yes
USB Type-C: Yes
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
Headphone/Microphone Combo Port: Yes
Thunderbolt: Yes
Thunderbolt Ports Quantity: 3
Software
Operating System Supported:

• Windows 10
• Windows 11
• Mac OS X 11.0 Big Sur
• Mac OS X 12.0 Monterey
• Mac OS X 13.0 Ventura

Power Description
Maximum Power Supply Wattage: 96 W
Physical Characteristics
Color Family: Dual Colour
Product Color:

• Black
• Grey

Height: 27.9 mm
Width: 193 mm
Weight (Approximate): 1 kg
Miscellaneous
Package Contents:

• Docking Station
• Thunderbolt 4 Cable
• Universal Power Adapter (EU/UK)
• Quick-Start Guide

Kensington Security Slot: Yes
Compatibility:

COMPATIBILITY: Features 3x downstream Thunderbolt 4 (40Gbps) ports to connect TB4, TB3, USB4 & USB 3.2
peripherals & display(s); Compatible w/Windows Thunderbolt 4/USB4 laptops or M1 Max/M1 Pro & Intel Thunderbolt
3 MacBooks (macOS 11 Big Sur or higher)

Brand Compatibility:

• Intel
• Apple
• Dell
• Lenovo
• HP

Warranty
Limited Warranty: 3 Year
