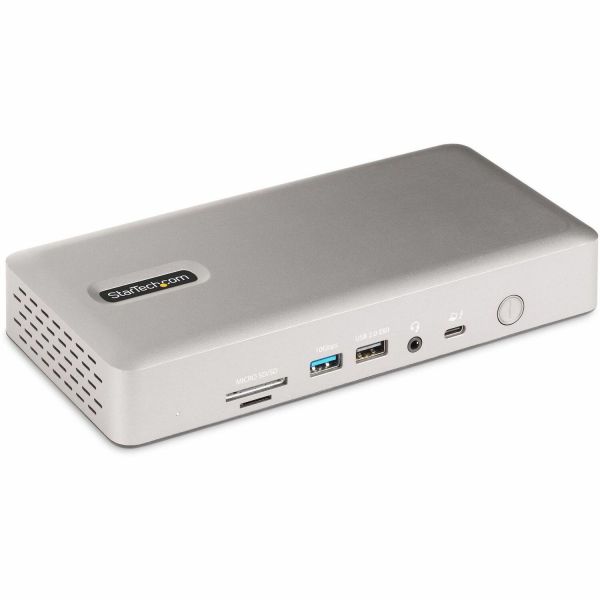

StarTech.com Docking Station

Marketing Information
This Thunderbolt 4 Certified docking station uses a single Thunderbolt 3, Thunderbolt 4, USB4, or USB Type-C port on a host computer to add high-performance connectivity while charging the laptop. For rapid deployment, the dock includes a 3.3ft. (1m) Thunderbolt 4 cable that connects to the front-facing USB-C host port, and features two sizes of Kensington-style security slots.

Flexible High-Performance Video Supporting up to Quad-Monitor 4K 60Hz

The dock is equipped with 2x HDMI and 2x DisplayPort video outputs for connecting multiple monitors to the host computer. The dock offers video flexibility, supporting single, dual, triple, or quad monitor configurations. With an Intel 12th Gen processor or higher that supports DP 1.4 ...with DSC, the docking station can support a quad-monitor configuration with resolutions up to 4K 60Hz. Quad displays are also available at lower resolutions or refresh rates on computers without DSC or with earlier Intel revisions. In addition, the dock supports a single 8K 60Hz display on either of the HDMI output ports.

Apple computers equipped with M1, M2, or M3 Max/Pro processors support dual displays. For Apple computers featuring the M1, M2, or M3 base processor, as well as iPad Pros with M1 or later processors, a single display is supported.

Port Connectivity

The docking station utilizes the high 40Gbps throughput available from your computer's Thunderbolt 4, Thunderbolt 3, or USB4 port to provide a wide range of port connectivity to suit a variety of applications.

The dock features:

• 2x HDMI ports to connect displays

• 2x DisplayPort ports to connect displays

• 3x USB 3.2 Gen 2 (10Gbps) Type-A ports to connect USB peripheral devices

• 1x USB 3.2 Gen 2 (10Gbps) Type-C ports to connect USB peripheral devices

• 2x USB 3.2 Gen 1 (5Gbps) Type-A ports to connect USB peripheral devices

• 1x USB 2.0 (480Mbps) Type-A port that supports BC 1.2 with 7.5W (1.5A) for charging battery powered USB devices

• 1x 2.5 Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN)

• 1x Secure Digital (SD) 4.0/UHS-II card reader to externally access SD, SDHC and SDXC memory cards

• 1x Micro Secure Digital (microSD) 4.0/UHS-II card reader to externally access mSD, mSDHC and mSDXC memory cards

• 1x 3.5mm 4-position TRRS Audio Jack to connect a 3.5mm headset

98W USB Power Delivery Certified

The Thunderbolt 4 docking station includes a 180W power adapter and supports 98W USB power delivery. This enables the dock to charge the laptop, with enough additional power for the downstream USB 2.0 port to support BC 1.2 with 7W (1.5A) for charging tablets, smartphones or other battery-powered USB devices.

Thunderbolt Certified

This certification ensures the dock will be fully compatible with Intel Evo/Tiger Lake (11th gen & up) Thunderbolt 4 laptops including: Dell Precision 5560/5760, XPS 13 9310, HP EliteBook 850 G8, ProBook 450 G8, and Lenovo X1 Carbon 9th Gen. The dock is also compatible with M1/M2/M3 Pro/Max MacBooks.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: 132UETB4USB4DOCK
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Docking Station
Packaged Quantity: 1
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Charging Capability: Yes
Device Supported:

• Smartphone
• Speaker
• Headset
• Monitor
• Tablet
• Notebook

Cable Length: 1 m
Memory Card Reader: Yes
Memory Card Supported:

• SD
• microSD
• Micro Size MultiMediaCard (MMC)
• SDHC
• SDXC
• microSDHC
• microSDXC

Features: Power Delivery Pass-through
Management Features:

• PXE Boot
• Wake-on-LAN
• MAC Address Pass-through

Number of Displays Supported: 4
Screen Mode Supported:

• 4K @ 60Hz
• 8K

Supported Resolutions:

• 3840 x 2160
• 7680 x 4320

Maximum Data Transfer Rate: 5 GB/s
Security Slot Type: Kensington Security Slot
Network & Communication
Ethernet Technology: 2.5 Gigabit Ethernet
Interfaces/Ports
Host Interface: Thunderbolt 4
Total Number of USB Ports: 7
Number of USB 2.0 Ports: 1
Number of USB 3.2 Gen 1 Type-A Ports: 2
Number of USB 3.2 Gen 2 Type-A Ports: 3
Number of USB Type-A Ports: 6
Number of USB Type-C Ports: 1
USB Type-A: Yes
USB Type-C: Yes
USB Type-C Detail: 1 x USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
Number of Network (RJ-45) Ports: 1
Number of DisplayPort Outputs: 2
DisplayPort: Yes
DisplayPort Version: 1.4
Headphone/Microphone Combo Port: Yes
Number of HDMI Outputs: 2
HDMI: Yes
HDMI Version: 2.1
Thunderbolt: Yes
Thunderbolt Ports Quantity: 1
Number of Thunderbolt 4 Ports: 1
USB Power Delivery: 98W
Software
Operating System Supported:

• Windows 11
• Windows 10
• macOS Big Sur
• macOS Monterey
• macOS Ventura
• macOS Sonoma
• Ubuntu

Power Description
Input Voltage Detail:

• 230 V AC
• 120 V AC

Maximum Power Supply Wattage: 180 W
Power Source Type: Power Adapter
Physical Characteristics
Color Family: Grey
Product Color: Space Gray
Height: 35.6 mm
Width: 210.8 mm
Weight (Approximate): 201.3 g
Miscellaneous
Package Contents:

• Docking Station
• 1 x 3ft (1m) Thunderbolt 4 Host Cable
• 1 x Universal Power Adapter (EU, UK)
• 1 x Quick-Start Guide

Kensington Security Slot: Yes
Compatibility:

Compatible Devices:

• Apple iPad Pros with M1 or later processors
• Intel Evo/Tiger Lake (11th gen & up) Thunderbolt 4 laptops
• Dell Precision 5560 Mobile Workstation
• Dell Precision 5760 Mobile Workstation
• XPS 13 9310 2 in 1 laptop
• HP EliteBook 850 G8 Notebook PC
• HP ProBook 450 G8 Notebook PC
• Lenovo X1 Carbon 9th Gen Laptop
• M1/M2/M3 Pro/Max MacBooks
• Apple MacBook Air
• Apple iPad Pro M1 (and later)
• All Thunderbolt 4/3 and USB4 laptops

Brand Compatibility:

• HP
• Dell
• Lenovo
• Apple
• Intel

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 3 Year
