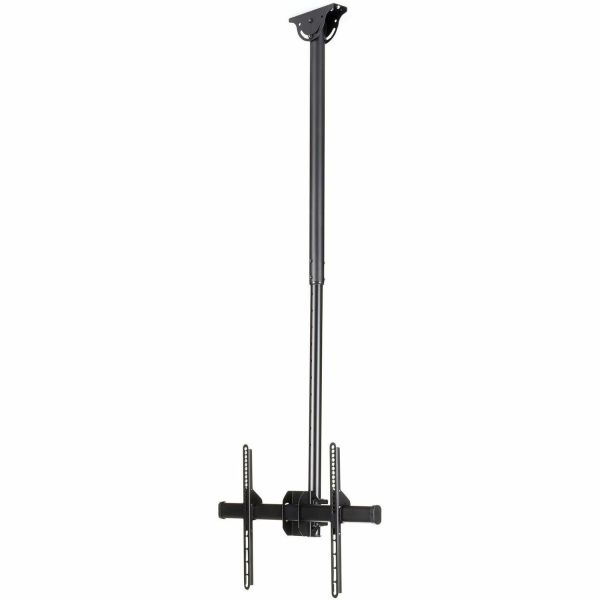

StarTech.com Ceiling TV Mount - 3.5' to 5' Pole

Marketing Information

This ceiling TV mount supports VESA mount compatible TVs from 32" to 75" in size, with a weight capacity of up to 110 lb. (50 kg). It lets you save wall and floor space by hanging your flat-panel LCD, LED or plasma TV from the ceiling in a prominent area.

The ceiling mount is ideal for use in corporate boardrooms, lobbies, entrances, restaurants, bars and meeting places.

Adjustable Height

With a telescopic pole, the TV mount lets you suspend a display at your desired distance from the ceiling. This works well with a range of ceiling heights. The steel pole can extend from 42" to 61" (1060 to 1560 mm) , with a total lift (height extension) of 19.7" (500 mm).

Swivels to Suit Your Ceiling

The f...lat-screen ceiling mount accommodates a wide variety of ceiling types. You can swivel the TV to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to 60 degrees), and pitched or horizontal (flat) ceilings.

Viewable from Any Direction

You can adjust your TV to create a comfortable viewing angle, by tilting it up to -25 degrees down towards your audience for optimum visibility. Plus, the full-motion mount lets you swivel your display around the pole + 180 / - 180 degrees, without using tools.

Hook-and-Mount Design

Simply attach the included vertical brackets, with built-in hooks, to the back of your TV. Once attached, hang your TV securely onto the ceiling mount. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.

FLATPNLCEIL is backed by a StarTech.com 5-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: FLATPNLCEIL
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Ceiling TV Mount - 3.5' to 5' Pole
Packaged Quantity: 1 Each
Product Type: Ceiling Mount
Product Information
Device Supported:

• Flat Panel Display
• LCD Display
• LED Display
• Plasma Display
• Curved Screen Display

Number of Displays Supported: 1
Maximum Load Capacity: 50.12 kg
Minimum Screen Size Supported: 81.3 cm
Maximum Screen Size Supported: 190.5 cm (75")
Features:

• Cable Management
• Telescoping
• Swivel
• Adjustable
• Tilt
• Full Motion
• Space Saving Design
• Pivot
• 360° Rotation
• Anti-theft

Height Adjustable: Yes
Physical Characteristics
Color Family: Black
Product Color: Black
Mounting Pattern:

• 600 x 400
• 400 x 200
• 400 x 400
• 300 x 300
• 200 x 200
• 200 x 300
• 200 x 400
• 300 x 200
• 400 x 300
• 600 x 200
• 600 x 300

Product Material: Steel
Height: 177.8 cm
Width: 14 cm
Length: 68.1 cm
Weight (Approximate): 5.99 kg
Miscellaneous
Package Contents:

• 1 x Ceiling Mount and Pole
• 1 x Extension Pole
• 2 x Vertical Brackets
• 1 x Horizontal Bracket
• 2 x Bolts
• 2 x Nuts
• 1 x M13 Wrench
• 1 x M5 Allen Key
• 1 x Mounting Template
• 4 x M5x14 mm Screws
• 4 x M6x14 mm Screws
• 4 x M8x30 mm Screws
• 4 x M6x30 mm Screws
• 4 x M8x50 mm Screws
• 4 x Washers
• 8 x Short Spacers
• 8 x Long Spacers
• 4 x 6.3x55 mm Screws
• 4 x Concrete Anchors
• 4 x Flat Washers
• 1 x Instruction Manual

Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 5 Year
