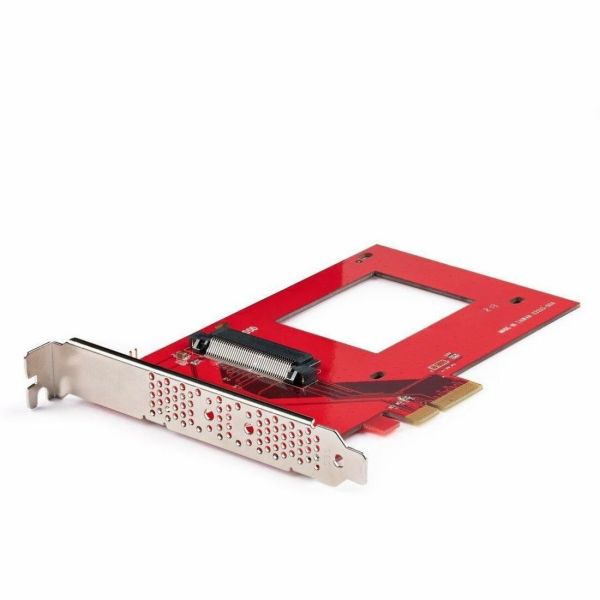

StarTech.com U.3 (SFF-TA-1001) to PCIe 4.0 x4 Host Adapter for 2.5" U.3 NVMe SSDs

Marketing Information

Add a 2.5 inch U.3 NVMe SSD into a PCIe 4.0 x4/x8/x16 slot in a desktop or server using the included screws, enabling ultra-fast data access.

Add U.3 Capabilities to a Desktop or Server

Install an SFF-TA-1001 SSD into a desktop or server using an available PCI Express 4.0 slot. The pre-installed full-profile bracket and included drive mounting screws enable the connection of a U.3 NVMe drive to a PCIe slot, avoiding the need for a drive backplane or additional cables. This adapter is not compatible with U.2 drives.

Universal Compatibility

The Adapter Card is backward compatible with motherboards that feature x4, x8, and/or x16 PCIe 3.0 slots. The U.3 Adapter requires no additional drivers or software a...nd works with all workstation and server operating systems, such as Windows, Windows Server, and Linux.

Optimal Airflow and Reliable Performance

The vented full-profile bracket and a large cutout in the PCB allow for better airflow and heat dissipation, which helps maintain optimal and reliable performance while avoiding thermal throttling.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: PEX4SFF8639U3
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: U.3 (SFF-TA-1001) to PCIe 4.0 x4 Host Adapter for 2.5" U.3 NVMe SSDs
Packaged Quantity: 1
Product Type: U.3 to PCI Express Adapter
Physical Characteristics
Product Color: Red
Product Material: Plastic
Height: 2.5 mm
Width: 88.9 mm
Length: 154.9 mm
Weight (Approximate): 62 g
Miscellaneous
Package Contents:

• U.3 (SFF-TA-1001) to PCIe 4.0 x4 Host Adapter for 2.5" U.3 NVMe SSDs
• 4 x Drive Mounting Screws
• 1 x Quick-Start Guide

Compatibility:

Compatible Drive Types: U.3 (PCIe, NVMe, SFF-TA-1001)

Country of Origin: Taiwan
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 2 Year
