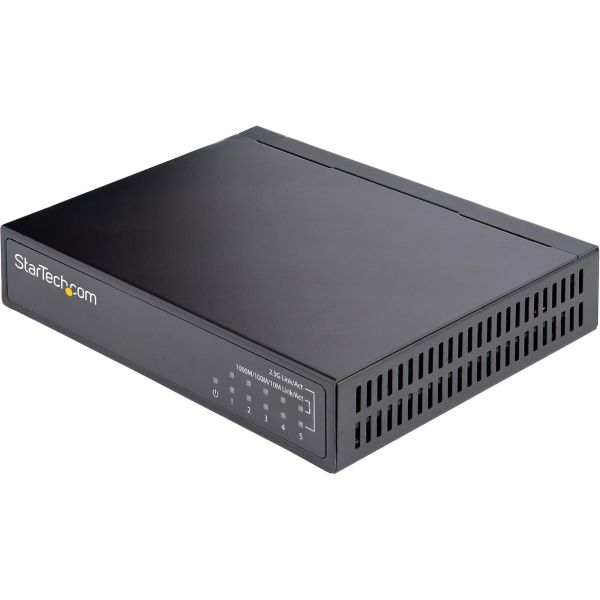

StarTech.com DS52000 Ethernet Switch

Marketing Information
The unmanaged network switch offers five multi-speed Ethernet ports (10/100/1000/2500 Mbps) in a compact and durable all-metal casing while remaining silent and energy-efficient (IEEE 802.3az). The network switch is the ideal solution to dramatically speed up your network to support 2.5GBASE-T, and being an unmanaged switch, you can set it up in no time.

Enhance your network

This network switch allows you to use existing Cat5e/Cat6/Cat6a cabling to increase the bandwidth to 2.5 Gbps, ideal for large file transfers, streaming, network sharing/storage, or other bandwidth-intensive applications. Auto-negotiation detects the highest supported speeds on your devices for maximum performance and compatibility. You can also use it in... combination with Wi-Fi 6 (802.11ax) wireless access points to expand your network range, bandwidth, and accessibility.

Secure and versatile

The 2.5G switch offers a security K-slot for more permanent and secure setups (cable not included). The unintrusive design and small dimensions (6.1x4.7x1.1 inch / 155x120x30 mm) make it easily adaptable to any deployment and has clear diagnostic LEDs that show the status of the devices at a glance. Additional features such as 9K jumbo frames, full-duplex, 16K MAC address table, QoS IEEE 802.1p, and wall mounting kit give you the flexibility to use it in a multitude of scenarios.

The DS52000 is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: DS52000
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Model: DS52000
Product Name: DS52000 Ethernet Switch
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 5
Network (RJ-45): Yes
Port/Expansion Slot Details: 5 x 2.5Gigabit Ethernet Network
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology:

• 2.5 Gigabit Ethernet
• Gigabit Ethernet

Network Technology:

• 2.5GBase-T
• 10/100/1000Base-T

Network & Communication
Layer Supported: 2
Networking Standards:

• IEEE 802.3az
• IEEE 802.11ax
• IEEE 802.1p
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3bz
• IEEE 802.3x

Management & Protocols
Manageable: No
Power Description
Power Source: Power Adapter
Power Plug Type: Type M
Physical Characteristics
Product Material:

• Steel
• Metal

Form Factor:

• Desktop
• Wall Mountable
• Compact

Height: 30.5 mm
Width: 119.4 mm
Length: 144.8 mm
Weight (Approximate): 649.2 g
