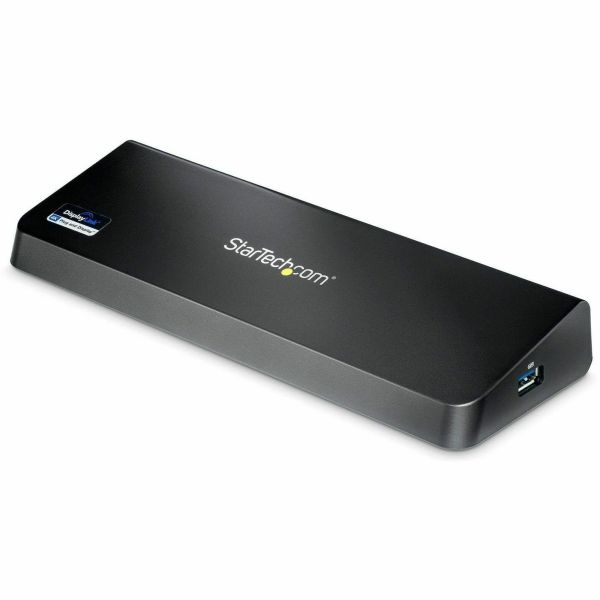

StarTech.com 4K Docking Station for Laptops - DP and HDMI - USB 3.0

Marketing Information

This TAA compliant dual-monitor USB 3.0 docking station combines a 4-port USB 3.0 hub, headphone and microphone audio connectors, a USB fast-charge port, and a GbE RJ45 Port with Wake-on-LAN (WOL).

4K Ultra HD Resolutions

This 4K USB docking station supports DisplayPort plus HDMI dual video, or a single DP display at 4K Ultra HD resolutions (3840 x 2160p).

Maximum Supported Resolutions*

Video Output Configuration Max DisplayPort Resolution Max HDMI Resolution

DisplayPort (Single Display)

3840 x 2160p (4K) N/A HDMI (Single Display) N/A 2560 x 1440p DisplayPort and HDMI (Two Displays) 2048 x 1152p 2048 x 1152p

*Lower resolutions are also supported. For example, if the max... is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.

Integrated USB 3.0 Hub

The built-in USB hub features four USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they are connected directly to your laptop.

USB Fast Charge

The USB 3.0 dock's always-on USB fast-charge port charges devices without a laptop connection and supports USB Battery Charging Specification 1.2 making it easy to charge your tablets and other mobile devices.

Direct Ethernet Connectivity

The integrated RJ45 Ethernet port supports speeds of 10/100/1000Mbps, giving you an instant connection to a reliable wired network.

Easy to Use

This docking station with DisplayPort and HDMI is universally compatible, working with Mac and Windows® USB 3.0 equipped laptops and includes a 2ft. USB 3.0 cable for quick setup.

StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 docking station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: USB3DOCKHDPC
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: 4K Docking Station for Laptops - DP and HDMI - USB 3.0
Packaged Quantity: 1 Each
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Charging Capability: Yes
Synchronizing Capability: Yes
Device Supported: Notebook
Cable Length: 60.96 cm
Number of Displays Supported: 2
Supported Resolutions:

• 3840 x 2160
• 2560 x 1440
• 2048 x 1152

Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: USB 3.0
Total Number of USB Ports: 4
Number of USB 3.0 Ports: 4
USB Type-A: Yes
Network (RJ-45): Yes
DisplayPort: Yes
Headphone: Yes
Headphone/Microphone Combo Port: Yes
Microphone: Yes
HDMI: Yes
Controls/Indicators
Status Indicators: LED Indicators:

• 1 - Link (Green)
• 1 - Activity (Yellow)

Software
Operating System Supported:

• macOS 14
• Windows 7
• Windows 8
• Windows 8.1
• Windows 10
• Windows 11
• Mac OS X Server 10.8 Mountain Lion
• Mac OS X 10.12 Sierra
• Mac OS X 10.14 Mojave
• Mac OS X 10.15 Catalina
• Mac OS X 11.0 Big Sur
• Mac OS X 12.0 Monterey
• Mac OS X 13.0 Ventura
• ChromeOS 55+

Physical Characteristics
Color Family: Black
Product Color: Black
Height: 22.9 mm
Width: 76.2 mm
Length: 226.1 mm
Weight (Approximate): 277.8 g
Miscellaneous
Package Contents:

• 4K Docking Station for Laptops - DP and HDMI - USB 3.0
• 1 x 2ft USB 3.0 Cable
• 1 x Universal Power Adapter
• 3 x Power Cords (NA/UK/EU)
• 1 x Driver CD
• 1 x Instruction Manual

Kensington Security Slot: Yes
Compatibility:

• Apple Mac Laptops

Microsoft Products:

• Surface Pro 4
• Surface Pro 3
• Surface 3
• Surface Pro 2
• Surface Book

Brand Compatibility:

• Apple
• Microsoft

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

TAA Compliant: Yes
Warranty
Limited Warranty: 3 Year
