StarTech.com Docking Station

Marketing Information

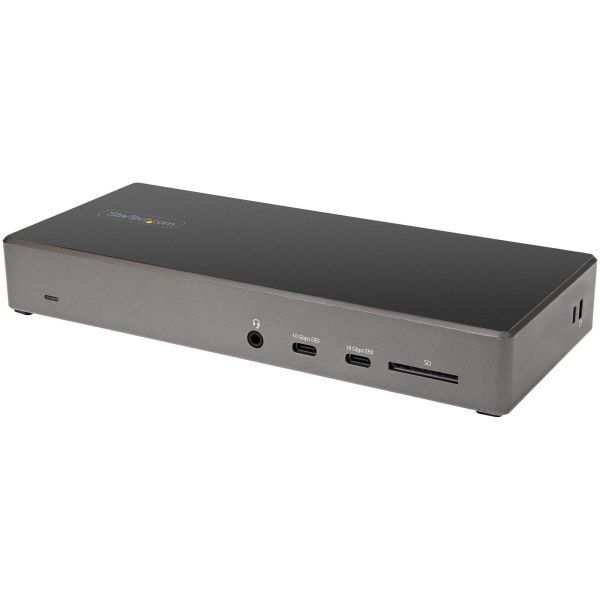

This USB-C Gen 2 10Gbps docking station turns your USB-C ® or Thunderbolt™ 3 Windows laptop or Chromebook into a powerful workstation. A USB 3.2 Gen 2 Type-C dock features everything you need, from triple video outputs up to 4K 60Hz to 10Gbps USB-C & USB-A downstream peripheral ports to 100W Power Delivery.HDMI & DisplayPort for Multiple Monitor Outputs

This USB-C Gen 2 docking station with DP 1.4 and HDMI 2.0 HBR3 support, is a perfect choice for dual or triple monitor setup, supporting up to triple 4K 30Hz nearly uncompressed video resolution output , with two DisplayPort and one HDMI outputs. Maximum dual and triple 4K display performance is supported on USB-C 11th Gen Intel-based (DP 1.4 HBR3 with DSC support) Windows Thunder...bolt 3 or USB-C laptops, but backwards compatibility to older laptop generations and lower resolution monitor requirements.

DP 1.4 HBR3 with DSC EnabledDP 1.4 HBR3 (without DSC)DP 1.2 HBR2

Triple Display

Up to 4096 x 2160 @ 30HzUp to 1920 x 1080 @ 60HzUp to 1600 x 900 @ 60HzDual Display

Up to 4096 x 2160 @ 60Hz*

*HDMI port + DP port or 2 DP portsUp to 2560 x 1440 @ 60HzUp to 1920 x 1080 @ 60HzSingle DisplayUp to 4096 x 2160 @ 60HzUp to 3840 x 2160 @ 60HzUp to 3840 x 2160 @ 30HzPower & Charge with 100W Power Delivery

Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 100 watt power delivery, to keep high performance laptops sufficiently charged during heavy productivity usage.

Charge smartphones and other devices with USB-C downstream charging ports featuring BC 1.2 charging specification. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.

Integrated 6-Port USB Hub & SD Card Reader

This USB-C Gen 2 docking station features 6 downstream USB ports in total to connect USB peripherals and an SD (4.0) card reader for media storage.

• 2x USB-C 3.2 Gen 2 - 10 Gbps (BC 1.2 Fast-Charge + Aways-On)
• 2x USB-A 3.2 Gen 1 - 5 Gbps
• 2x USB-A 2.0 - 480 Mbps
• SD 4.0 Card Reader

Also included, is a gigabit Ethernet port with PXE Boot, as well as 4-position TRRS stereo audio for a headset and mic.

Additional Security Features

This USB-C docking station comes with plenty of security features two K-slots for a Kensington style laptop lock.

Connected Device Transparency with the StarTech.com MAC Address Changer Utility

The DK31C2DHSPDUE includes a free Windows® application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the dock, the computer's MAC address is typically not broadcast to the network, as your network only sees the MAC address of the docking station. However, the StarTech.com MAC Address Changer or Cloning software enables the USB-C dock to use MAC address spoofing of the connected Windows laptop rather than the MAC address of the dock itself. This ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly. To request access to our MAC Address Changer utility, please contact our Technical Support Department by phone, live chat, or e-mail.

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: DK31C2DHSPDUE
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Docking Station
Packaged Quantity: 1
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported:

• Notebook
• Monitor
• Workstation
• Tablet

Number of Displays Supported: 3
Screen Mode Supported: 4K
Supported Resolutions:

• 4096 x 2160
• 3840 x 2160
• 2560 x 1440
• 1920 x 1080
• 1600 x 900

Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: USB 3.1 Type C
Total Number of USB Ports: 6
Number of USB 3.1 Type-C Ports: 1
Number of USB 3.1 Gen 1 Type-A Ports: 2
Number of USB Type-A Ports: 4
Number of USB Type-C Ports: 2
USB Type-A: Yes
USB Type-C: Yes
USB Type-C Detail: 2 x USB Type-C (Fast-Charge, 24 pin) USB 3.0, 1 x USB 3.1 USB Type C (10 pin, Gen 2, 10 Gbps)
Network (RJ-45): Yes
Number of RJ-45 Ports: 1
Number of DisplayPorts: 2
DisplayPort: Yes
Headphone/Microphone Combo Port: Yes
Number of HDMI Ports: 1
HDMI: Yes
Software
Operating System Supported:

• Windows
• ChromeOS
• macOS

Power Description
Maximum Power Supply Wattage: 100 W
Physical Characteristics
Height: 30.5 mm
Width: 88.9 mm
Weight (Approximate): 300.5 g
Miscellaneous
Package Contents:

• Docking Station
• AC Adapter
• 2 x Power Cable UK &, EU
• 1 x USB-C Cable (1 m)
• Quick-Start Guide

Kensington Security Slot: Yes
Compatibility: Compatible Notebook/Tablet PC:

• Lenovo X1 Carbon
• Lenovo ThinkPad P Series
• Dell Latitudes Series
• Dell Precision Series
• Dell XPS 15
• HP Spectre
• HP ZBook
• Google Chromebook

Brand Compatibility:

• Lenovo
• Dell
• HP
• Google

Environmental Compliance:

• Waste Electrical and Electronic Equipment Directive (WEEE)
• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty
Limited Warranty: 3 Year
