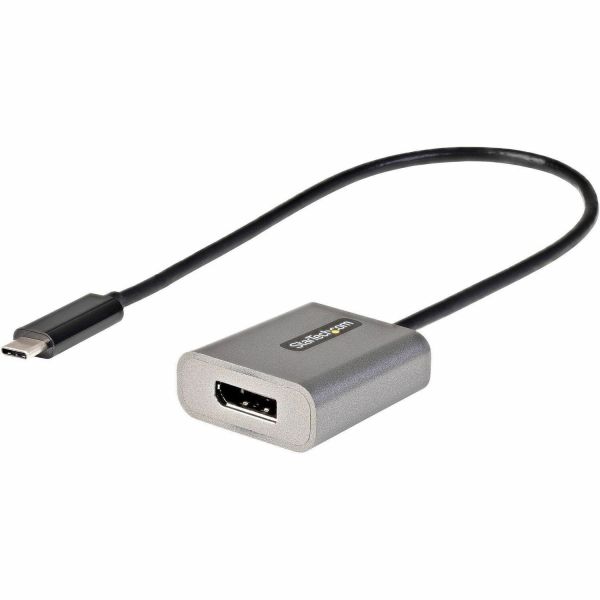

StarTech.com USB-C to DisplayPort Adapter

Marketing Information
This USB-C™ to DisplayPort™ adapter enables you to output DP video and audio from the USB Type-C™ port on your laptop, tablet, smartphone or other USB C device.

Extended Cable Length

This USB C adapter is equipped with an extra-long 12" (30cm) attached cable, providing an extended reach to reduce port and connector strain on 2-in-1 devices or laptops on risers stands.

Ultra HD 4K & 8K Resolution

The adapter lets you harness the video capabilities that are built into your computer's USB Type-C connection, to deliver the astonishing quality of UHD to your 4K 60Hz display. This makes it easier for you to multitask while working on the most resource-demanding applications imaginable.

With this adapter, you can also achieve an output resolution of up to 7680x4320 at 60Hz (with a laptop supporting DP 1.4 and DSC) or 7680x4320 at 30Hz (without DSC), which is perfect for performing high-resolution tasks such as viewing 8K video. Plus, the DP 1.4 adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other workspace applications while future-proofing for 8K implementation.

Host DP 1.4 HBR3 (with DSC) DP 1.4 HBR3 (without DSC) DP 1.2 HBR2 8K Output 7680x4320 @ 60Hz 7680x4320 @ 30Hz N/A 4K Output 3840x2160 @ 60Hz 3840x2160 @ 60Hz 3480x2160 @ 60Hz 1080p Output 1920x1200 @ 60Hz 1920x1200 @ 60Hz 1920x1200 @ 60Hz

Ultimate Portability

This USB Type-C video adapter is highly portable with a small footprint and lightweight design that's easy to tuck into your laptop bag while commuting between your home, office or traveling for business.

The CDP2DPEC is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Notes:

• To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4
• Your USB-C device must support DisplayPort over USB-C (DP alt mode) to work with this adapter

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: CDP2DPEC
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: USB-C to DisplayPort Adapter
Packaged Quantity: 1 Each
Product Type: A/V Adapter
Technical Information
Adapter Type: DisplayPort/USB-C
Connector Type on First End: USB Type C - Male
Connector on First End Details: 1 x 24-pin Type C USB Male
Connector Type on Second End: DisplayPort 1.4 Digital Audio/Video - Female
Connector on Second End Details: 1 x 20-pin DisplayPort 1.4 Digital Audio/Video Female
Maximum Resolution Supported: 7680 x 4320
Features:

• Display Stream Compression (DSC)
• HDCP 2.2
• HDCP 1.4
• Strain Relief

Physical Characteristics
Color Family: Grey
Product Color: Grey
Product Material: Plastic
Height: 15.2 mm
Width: 38.1 mm
Depth: 391.2 mm
Weight (Approximate): 25.5 g
Warranty
Limited Warranty: 3 Year
