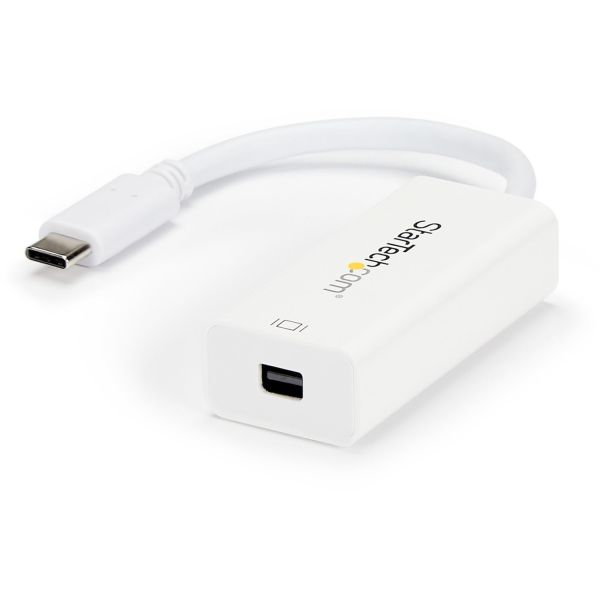

StarTech.com USB C to Mini DisplayPort Adapter - USB C to mDP Adapter - 4K 60Hz

Marketing Information

This USB Type-C to Mini DisplayPort adapter lets you output mini DisplayPort (mDP) video and audio from the USB Type-C port on your laptop or other device. It works with USB 3.1 or Thunderbolt 3 Type-C devices that pass an mDP video signal, such as your MacBook Pro, Chromebook or 2018 iPad Pro.

IT Pro Performance

This adapter features a unique video signal booster which amplifies the signal and ensures reliable performance, even with lower quality cables. The amplifier also increases the max. supported DP cable length compared to other brands.

Enjoy High-Definition Resolution up to 4K at 60Hz

Harness the video capabilities that are built into your computer's USB-C connection, using the adapter to... deliver the astonishing quality of UHD to your 4K 60Hz display.

You can achieve an output resolution of up to 3840 x 2160p at 60Hz, perfect for high-resolution tasks such as viewing 4K video. The USB-C video adapter is backward compatible with 1080p monitors or displays, which makes it a great accessory for workspace applications.

Hassle-Free Connection for Your USB Type-C Laptop

This adapter lets you use the versatile USB Type-C port on your portable device. USB-C is a reversible connector, enabling you to plug it into your device in any direction. The Thunderbolt 3 compatible adapter provides a hassle-free connection to your Windows or Mac based Thunderbolt 3 computer.

Lightweight Design for Easy Portability

The compact USB-C to mDP adapter is lightweight and fits perfectly in your laptop bag. Its portable design is ideal for BYOD (Bring Your Own Device) applications at the office or on the road.

The CDP2MDP is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Notes:

• Your USB-C device must support DisplayPort over USB-C (DP Alt Mode) to work with this adapter

• This adapter outputs a single-mode Mini DisplayPort signal and will not work with additional video adapters such as Mini DisplayPort to HDMI, Mini DisplayPort to VGA or Mini DisplayPort to DVI adapters

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: CDP2MDP
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: USB C to Mini DisplayPort Adapter - USB C to mDP Adapter - 4K 60Hz
Packaged Quantity: 1 Each
Product Type: A/V Adapter
Technical Information
Adapter Type: Mini DisplayPort/USB
Connector Type on First End: USB Type C - Male
Connector on First End Details: 1 x 24-pin Type C USB Male
Connector Type on Second End: Mini DisplayPort 1.2 Digital Audio/Video - Female
Connector on Second End Details: 1 x 20-pin Mini DisplayPort DisplayPort 1.2 Digital Audio/Video Female
Maximum Resolution Supported: 3840 x 2160
Features:

• Reversible
• Passive

Physical Characteristics
Color Family: White
Product Color: White
Product Material: Plastic
Height: 15.2 mm
Width: 27.9 mm
Length: 180.3 mm
Weight (Approximate): 23 g
Miscellaneous
Additional Information:

Chipset Manufacturer: NXP

Chipset Model: PTN5100

Platform Supported: Mac

Form Factor: External

Environmental Compliance:

• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Restriction of Hazardous Substances (RoHS)

Warranty
Limited Warranty: 3 Year
