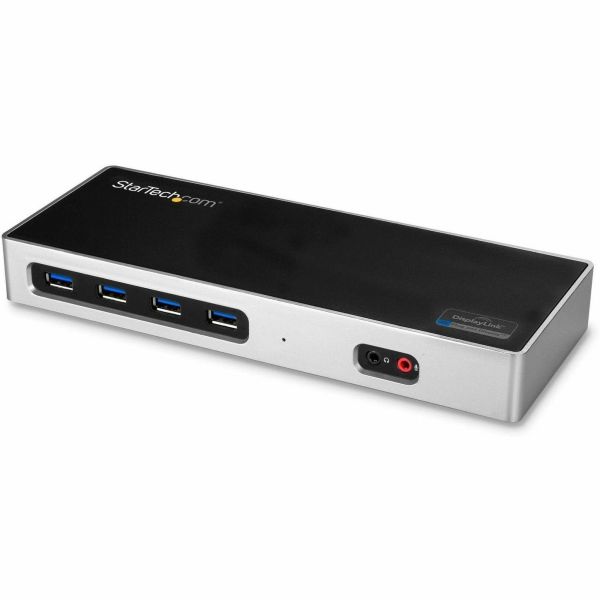

StarTech.com Dual-4K Docking Station with 6 x USB 3.0 Ports

Marketing Information

This dual-4K docking station offers wide flexibility in setting up your workstation, working with both USB-C and USB-A port laptops and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors.

Enhance Productivity with Dual-4K 60Hz Video

Ideal for highly detailed graphics applications, this dual-4K 60Hz docking station enhances your productivity by expanding the display capabilities of your laptop across two Ultra HD 4K monitors. The laptop docking station works with DisplayLink® to support high-resolution monitors, enabling two full 4K 60Hz displays from a single USB connection.

With the dual-4K dock, connect:

• 2x 4K DisplayPort displays (up to 4096 x 2160p @ 60Hz)
...>2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz)
• 1x 4K DisplayPort + 4K HDMI displays (up to 4096 x 2160p @ 60Hz)

Connects to USB-C and USB-A Laptops

The USB 3.0 docking station supports USB-C and USB-A enabled Mac and Windows laptops. This means you can connect newer USB-C or Thunderbolt™ 3 laptops or extend the life of legacy USB 3.0 (Type-A) laptops.

All the Connections You Need

This USB-A & USB-C dock lets you transform your Mac or Windows laptop into a full workstation with six USB 3.0 (Type-A) ports, a Gigabit Ethernet port, and separate 3.5 mm audio and microphone ports for multiple audio connections, all using a single cable.

DK30A2DH is backed by a StarTech.com 3-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: DK30A2DH
Manufacturer Website Address: http://www.startech.com/uk
Brand Name: StarTech.com
Product Name: Dual-4K Docking Station with 6 x USB 3.0 Ports
Packaged Quantity: 1 Each
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Device Supported: Notebook
Number of Displays Supported: 2
Screen Mode Supported: 4K
Supported Resolutions:

• 3840 x 2160
• 4096 x 2160

Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: USB Type C
Audio Line Out: Yes
Number of USB 3.0 Ports: 6
USB Type-C: Yes
USB Type-C Detail: 1 - USB tipo C (24 pines) USB 3.0 (5 Gbps) hembra
Network (RJ-45): Yes
Number of DisplayPort Outputs: 2
DisplayPort: Yes
Microphone: Yes
Number of HDMI Outputs: 2
HDMI: Yes
Thunderbolt: Yes
Controls/Indicators
Status Indicators: 1 x Power
Software
Operating System Supported:

• Windows XP
• Windows Vista
• Windows 7
• Windows 8
• Windows 8.1
• Windows 10
• Windows 11
• Mac OS X 10.6 Snow Leopard
• Mac OS X 10.12 Sierra
• Mac OS X 10.14 Mojave
• Mac OS X 10.15 Catalina
• Mac OS X 11.0 Big Sur
• Mac OS X 12.0 Monterey
• Mac OS X 13.0 Ventura
• Ubuntu 18.04
• Ubuntu 20.04
• ChromeOS 55+
• macOS 14

Power Description
Maximum Power Supply Wattage: 40 W
Physical Characteristics
Color Family: Dual Colour
Product Color:

• Black
• Silver

Height: 27.9 mm
Width: 83.8 mm
Depth: 223.5 mm
Weight (Approximate): 430.9 g
Miscellaneous
Package Contents:

• Dual-4K Docking Station with 6 x USB 3.0 Ports
• 1 x USB-C to USB-A cable
• 1 x USB-C to USB-C cable
• 1 x Universal Power Adapter (NA/JP, UK, EU, ANZ)
• 1 x Quick-Start Guide

Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty
Limited Warranty: 3 Year
